Model 106

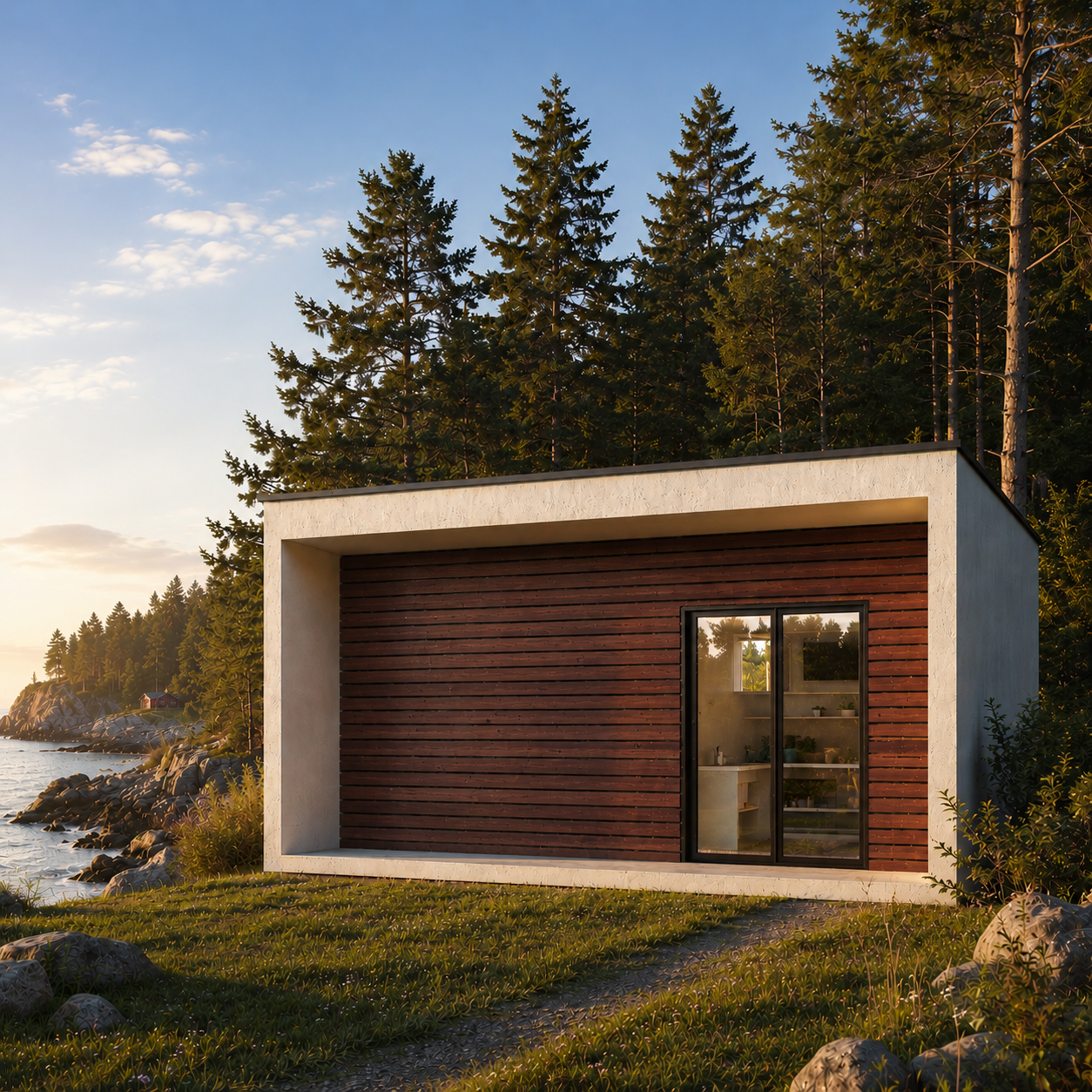

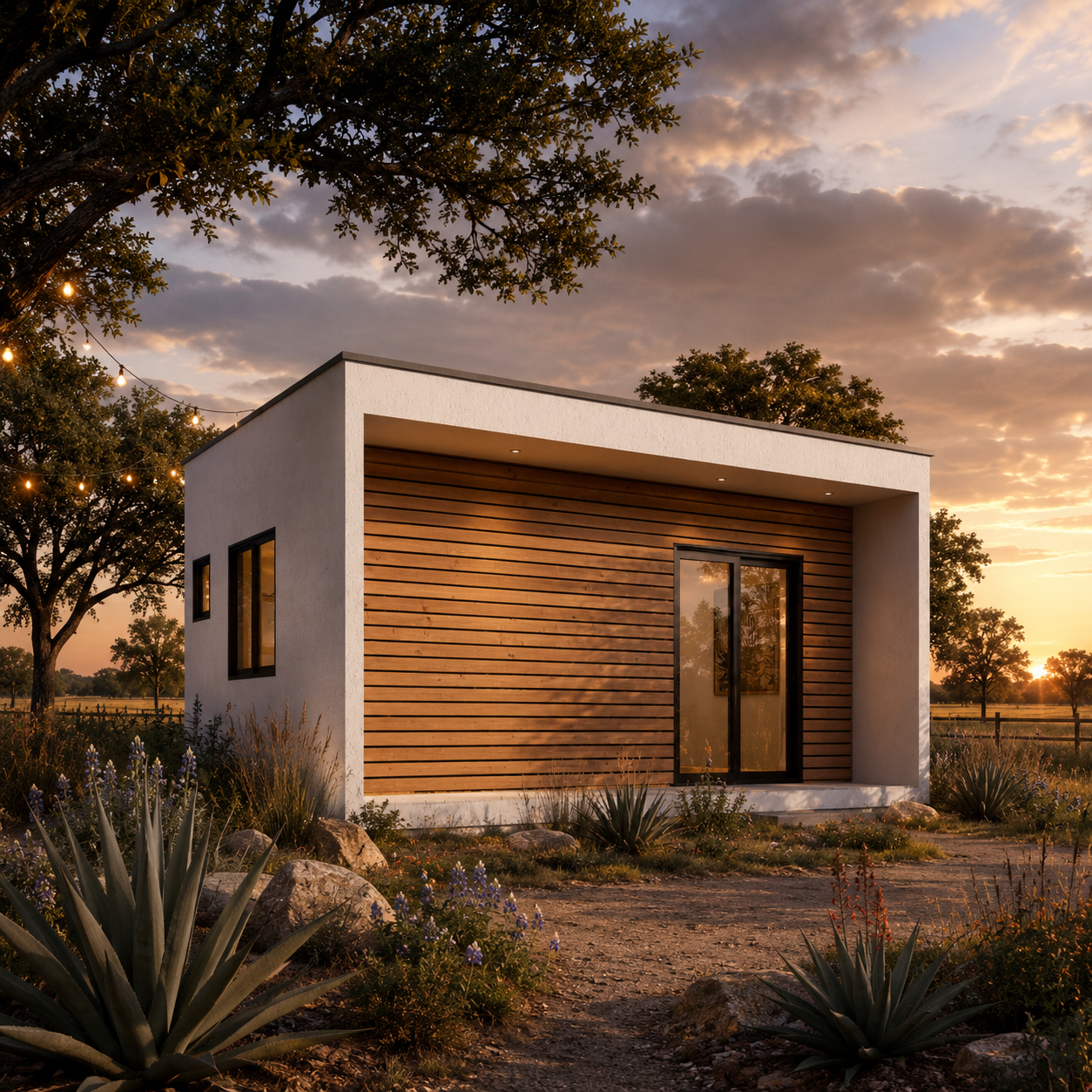

106-THE ATOM
Small footprint. Big potential. THE ATOM is an intelligently designed micro-home that combines efficiency, comfort, and modern simplicity—perfect for guest suites, short-term rentals, backyard homes, or flexible living solutions.
220
sq ft
1
Bedroom
1
Bathroom
$60K
DIY From
$95K
Installed From
Quick Specifications
Footprint
220 sq ft
Building Size
14 X 20
Roofing
2 X 10
BC Step code
Step Code Level 3
Build Time
2 weeks
Tour the build

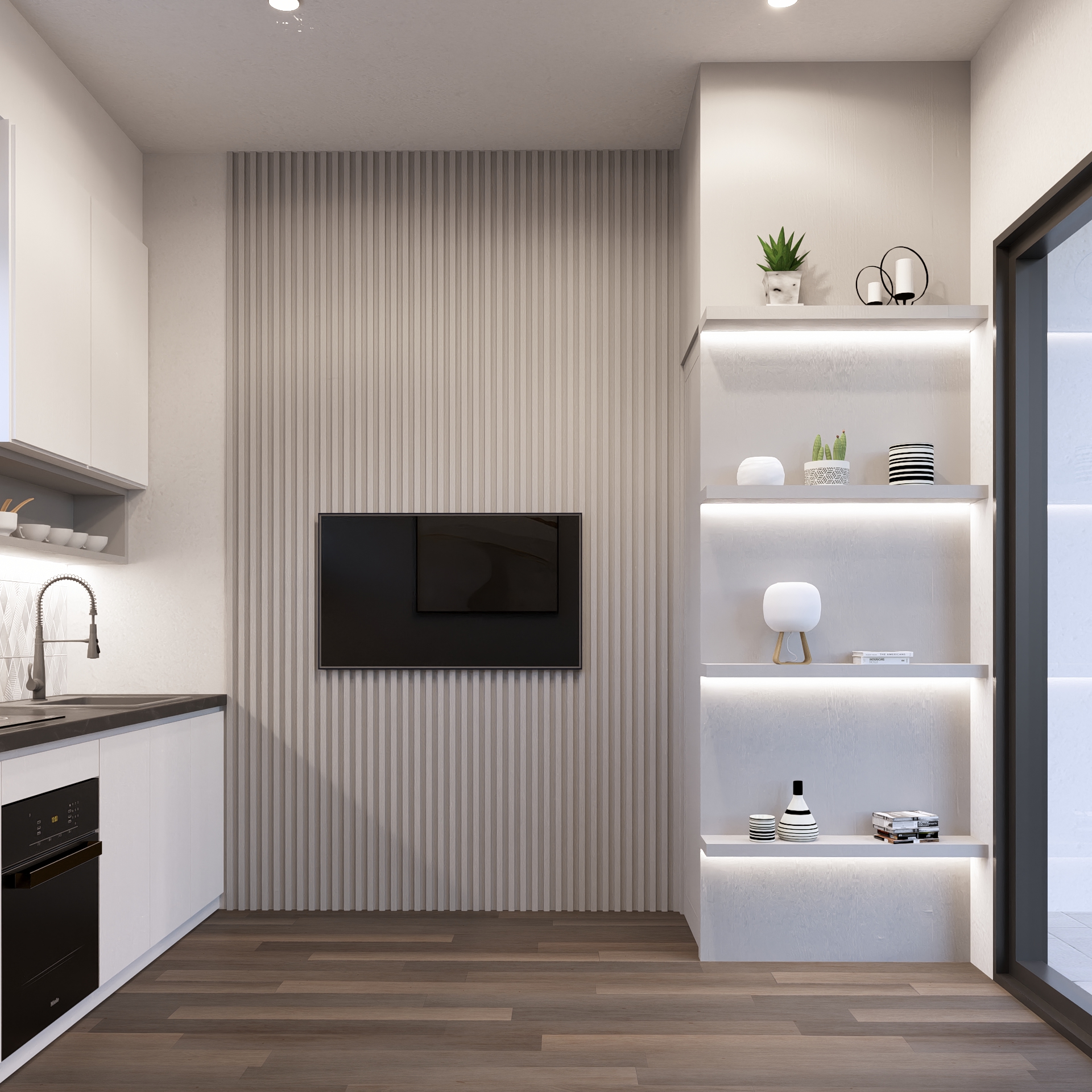

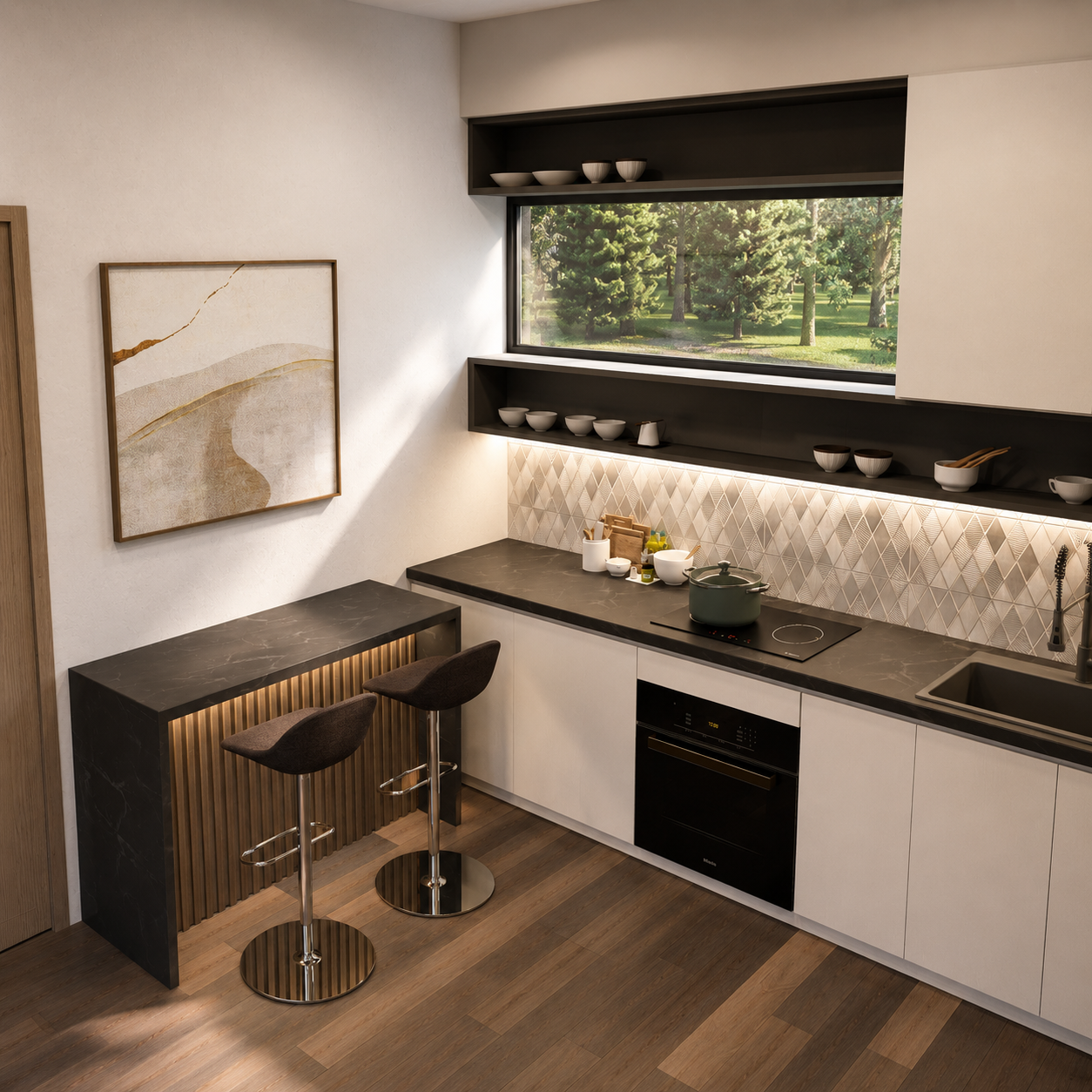

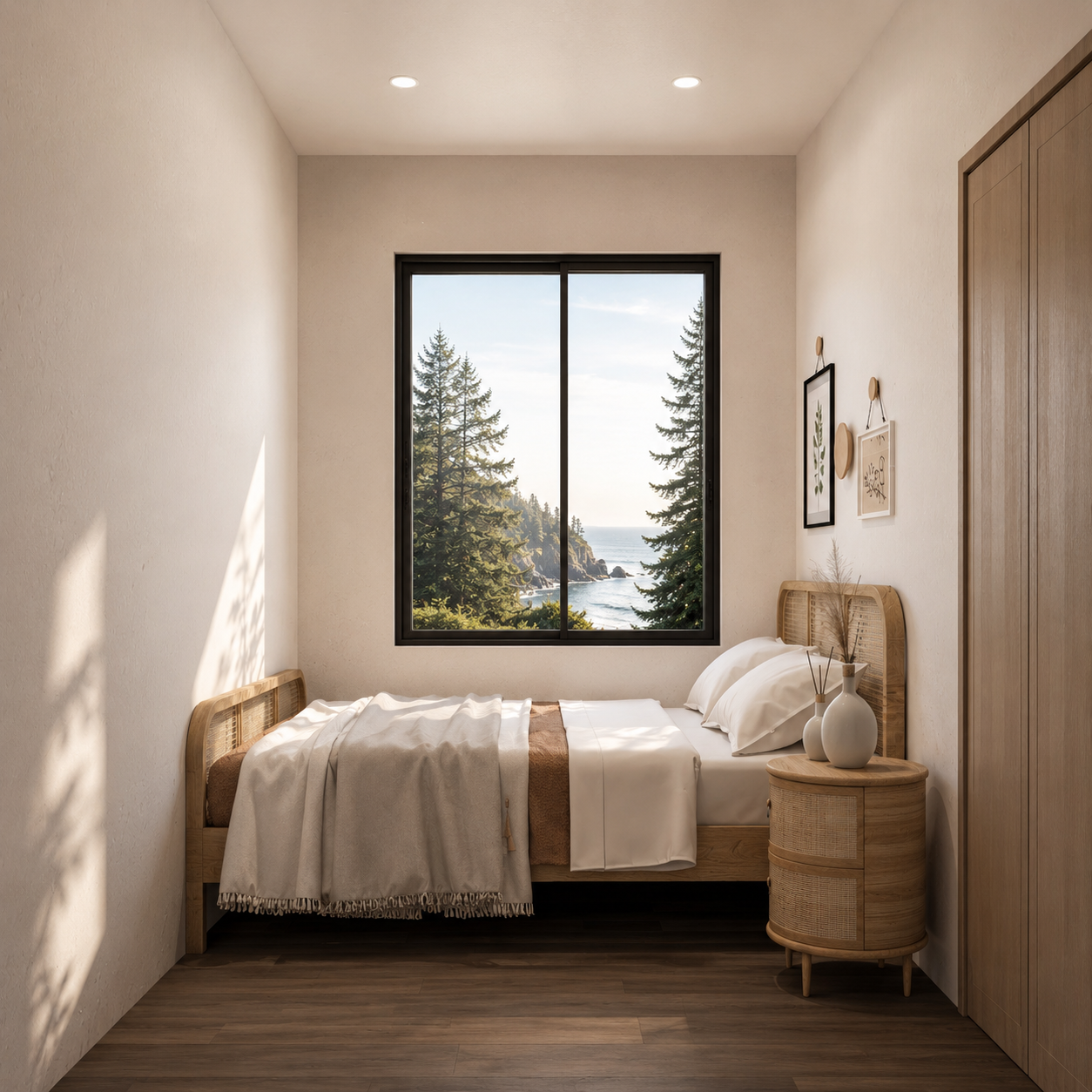

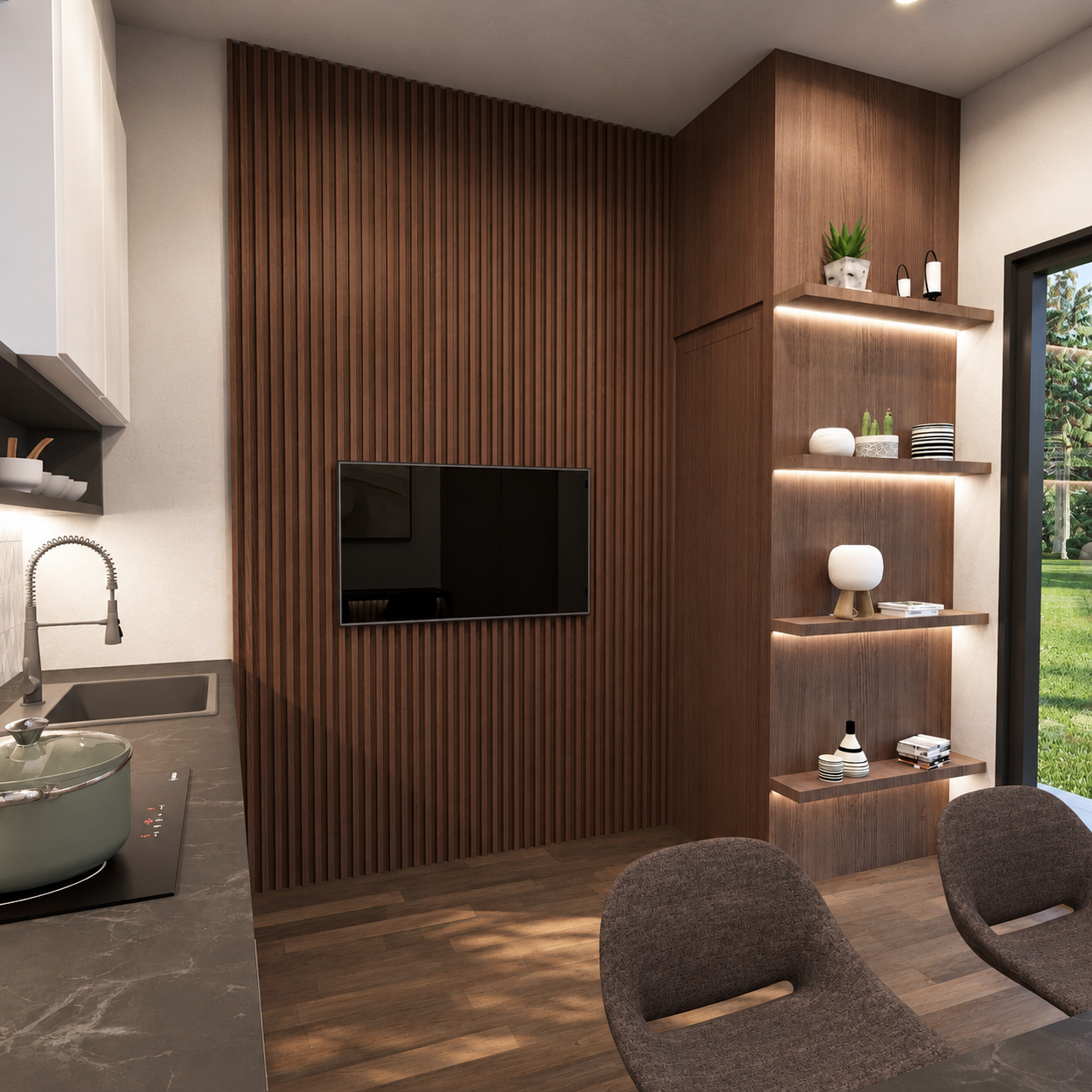

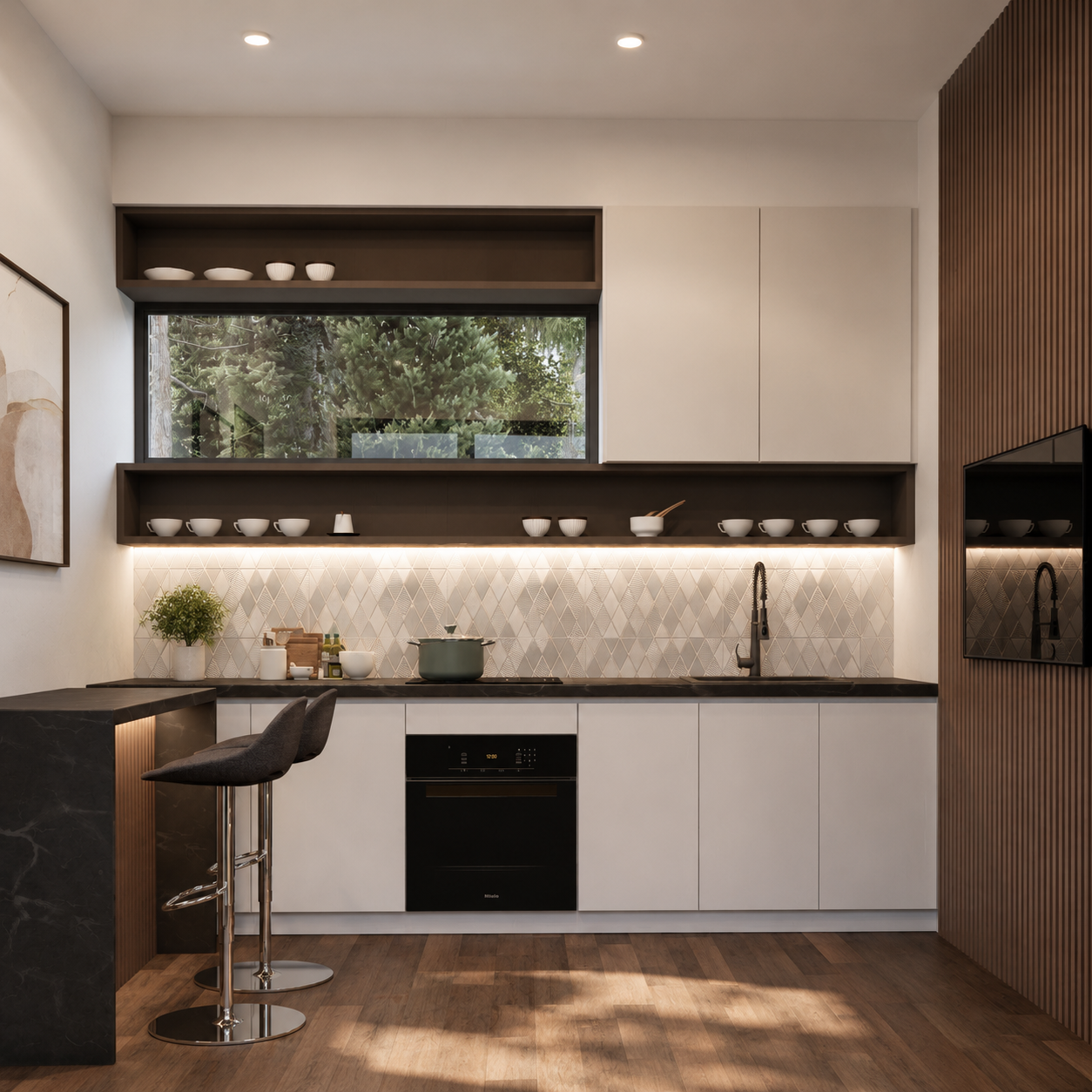

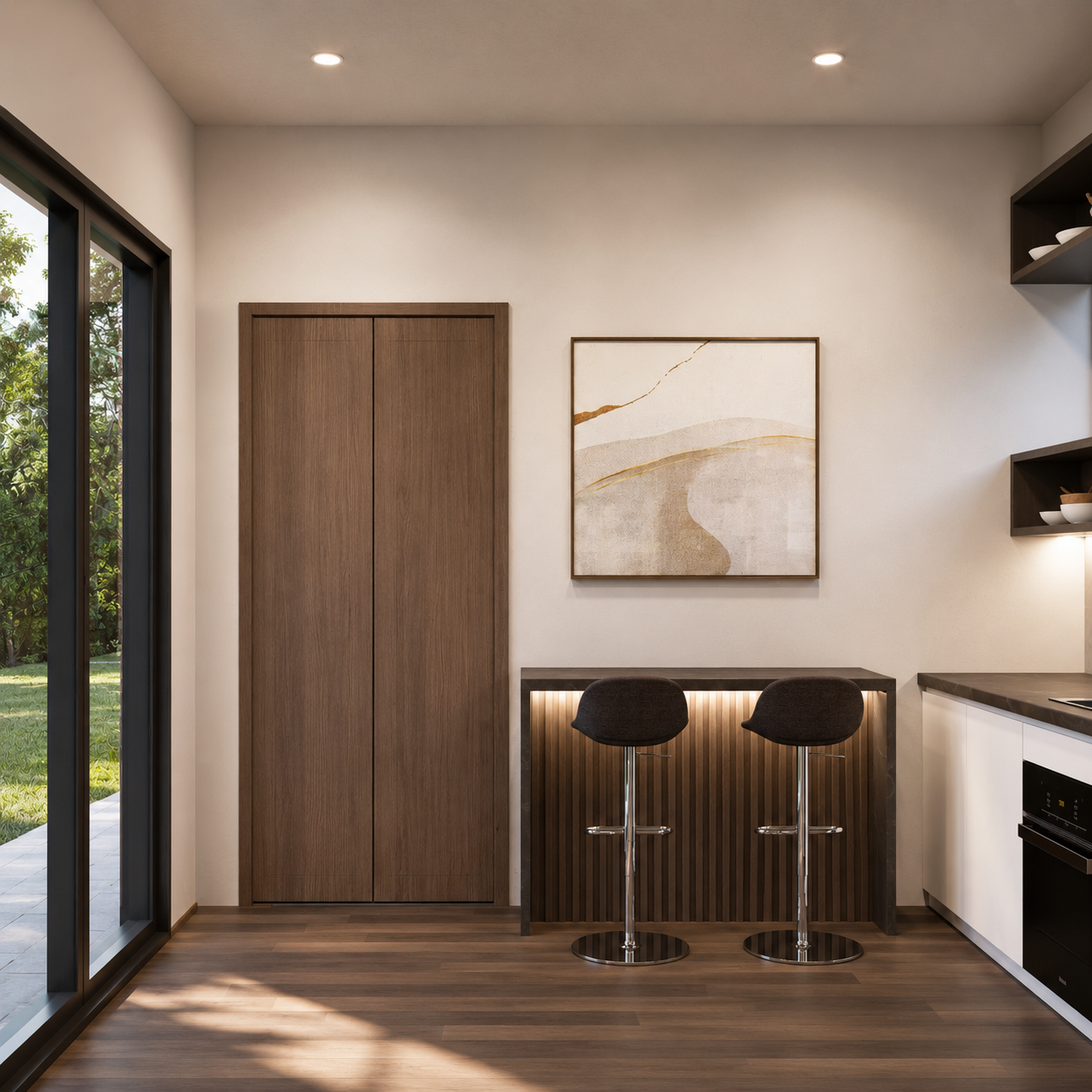

Inside the 106-THE ATOM .

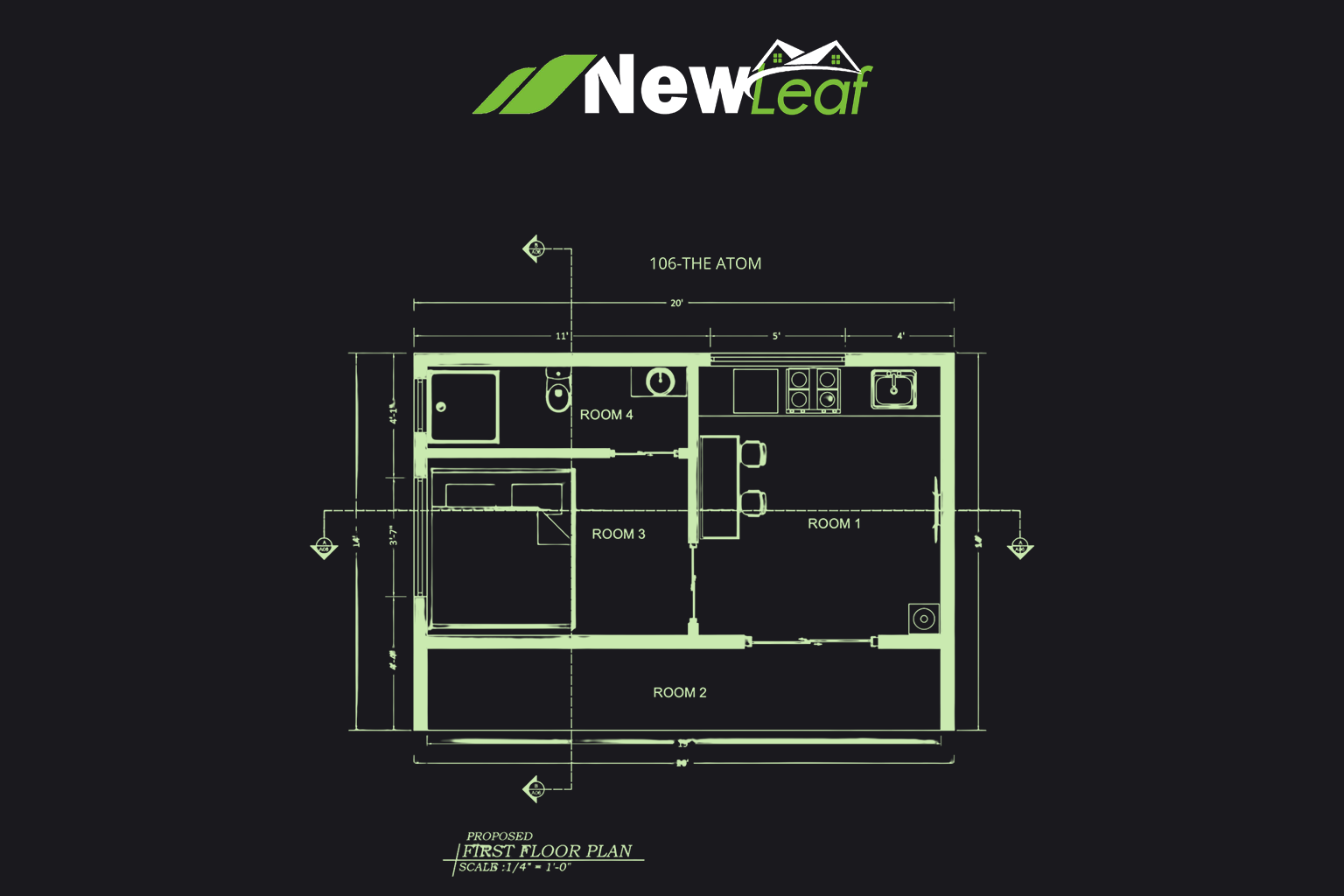

Hover any photo with a 📍 Plan badge to highlight the matching room on the floor plan.
106-THE ATOM
Features & Systems
What goes into every 106-THE ATOM .
Structure
- •Panelized 2x6 wood frame walls
- •Engineered roof trusses
- •Concrete foundation
- •Floor joists at 19.2" o.c.
Envelope
- •Rain screen and vapor barrier
- •R-22 wall insulation
- •R-40 attic insulation
- •Double-pane windows standard
Mechanical
- •Cold-climate heat pump
- •HRV with HEPA-grade filtration
- •Heat-recovery DHW
- •200A main service panel (EV-ready)
Interior Finishes
- •Quartz countertops
- •Soft-close panelized cabinetry
- •9' ceilings
- •Engineered hardwood floors
Wall System Breakdown
Engineered, panel by panel.
- •Panelized 2x6 wood-frame walls
- •Factory-controlled assembly
- •R-22 continuous insulation
- •Built-in service cavity
- •Engineered for code compliance
- •Double-Pane Windows Standard
- •3rd-party blower-door tested
- •Site assembly in 10-14 days
Detailed Specifications
The full spec sheet.
| Component | Material | Specification | Notes |
|---|---|---|---|
| Foundation | Concrete Forms | 8" Wall | Torch On Membrane Foundation Waterproofing |
| Floor System | 2 X 10 or engineered "I joists | TJI 11.875", 19.2" o.c. | OSB sub-floor adhered + screwed |
| Exterior Walls | 2x6 Wood Stud | 9'0 Tall, 16" OC | Continuous R-value > 22 |
| Windows | Vinyl Double Pane | U 0.18 / SHGC 0.30 | Triple pane Upgrade Available |
| Roofing | Standing Seam Metal | 26 gauge-16' panel | 40-yr finish warranty |
| HVAC | Cold Weather Heat Pump | 9 SEER / HSPF 12.5 / -25°C | |
| Ventilation | High Efficiency HRV | 200 CFM, 80% recovery | HEPA-13 filtration |
Performance Comparison
How the 106-THE ATOM rates.
Energy Efficiencty30%
Lower energy loss than standard build
Structural Strength80%
Exceeds NBC 2020 by 40%
Build Speed90%
4-6 Week site Assembly
Air Tightness60%
2.5 ACH
Annual Operating Costs
New Leaf Conventional Build
JanFebMarAprMayJunJulAugSepOctNovDec
Documents
Architectural drawings.
Walkthrough
See it in motion.
Location & Availability
Where we deliver.
Delivery available within 1,500 km of any New Leaf Vision facility. Lead times depend on configuration and current production queue.
Loading map…
BC + Alberta
Available-2 week lead time
Ontario + Quebec
Available-4 week lead time
West United States
Available-4 week lead time
Saskatchewan
Available-3 week lead time
Texas
Available-6 wee lead time
Start Your Project
Ready to build your 106-THE ATOM ? Our team will guide you through every step — from site assessment to keys in hand.
