Model 105A
105A-THE ORBIT

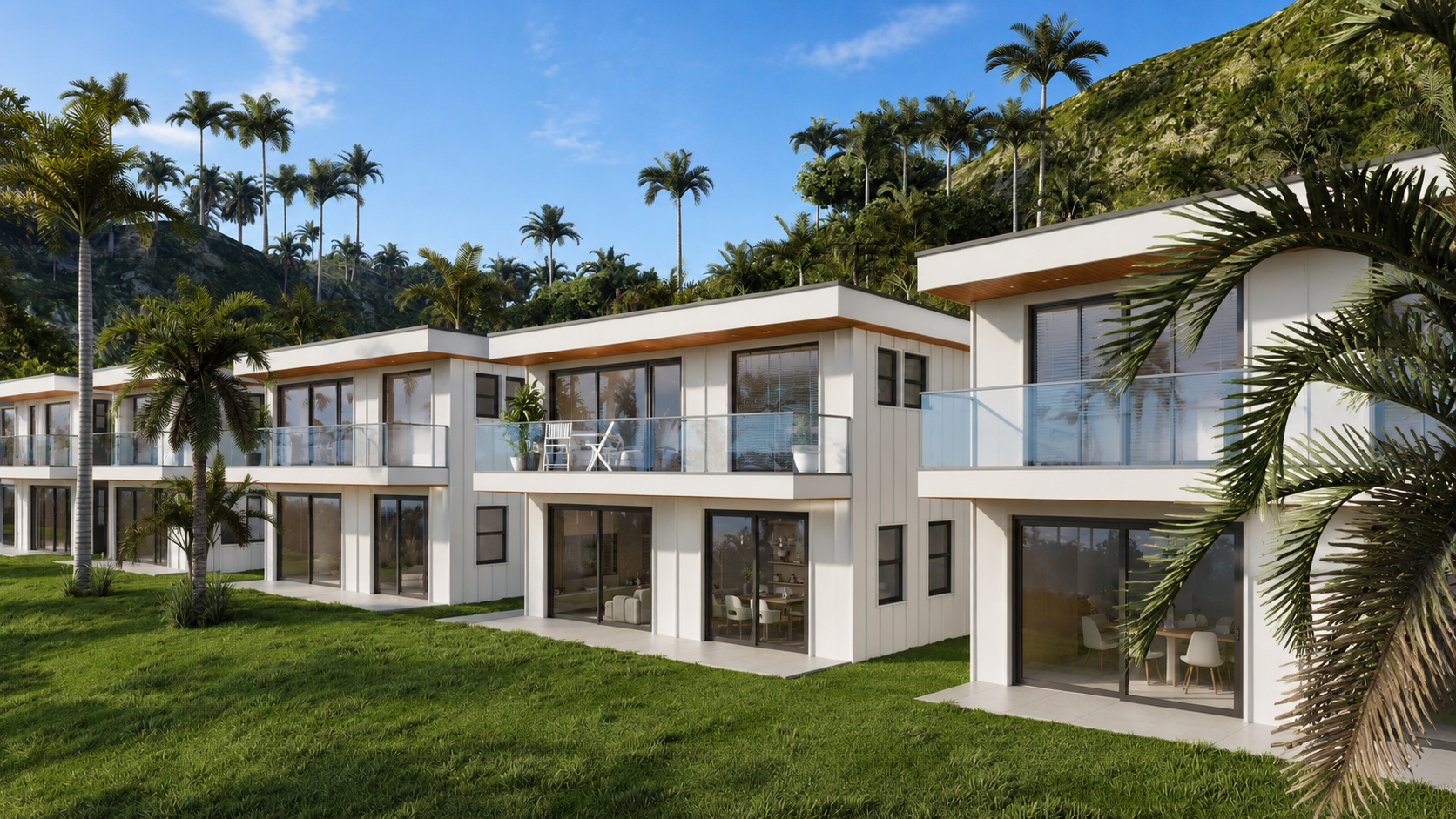

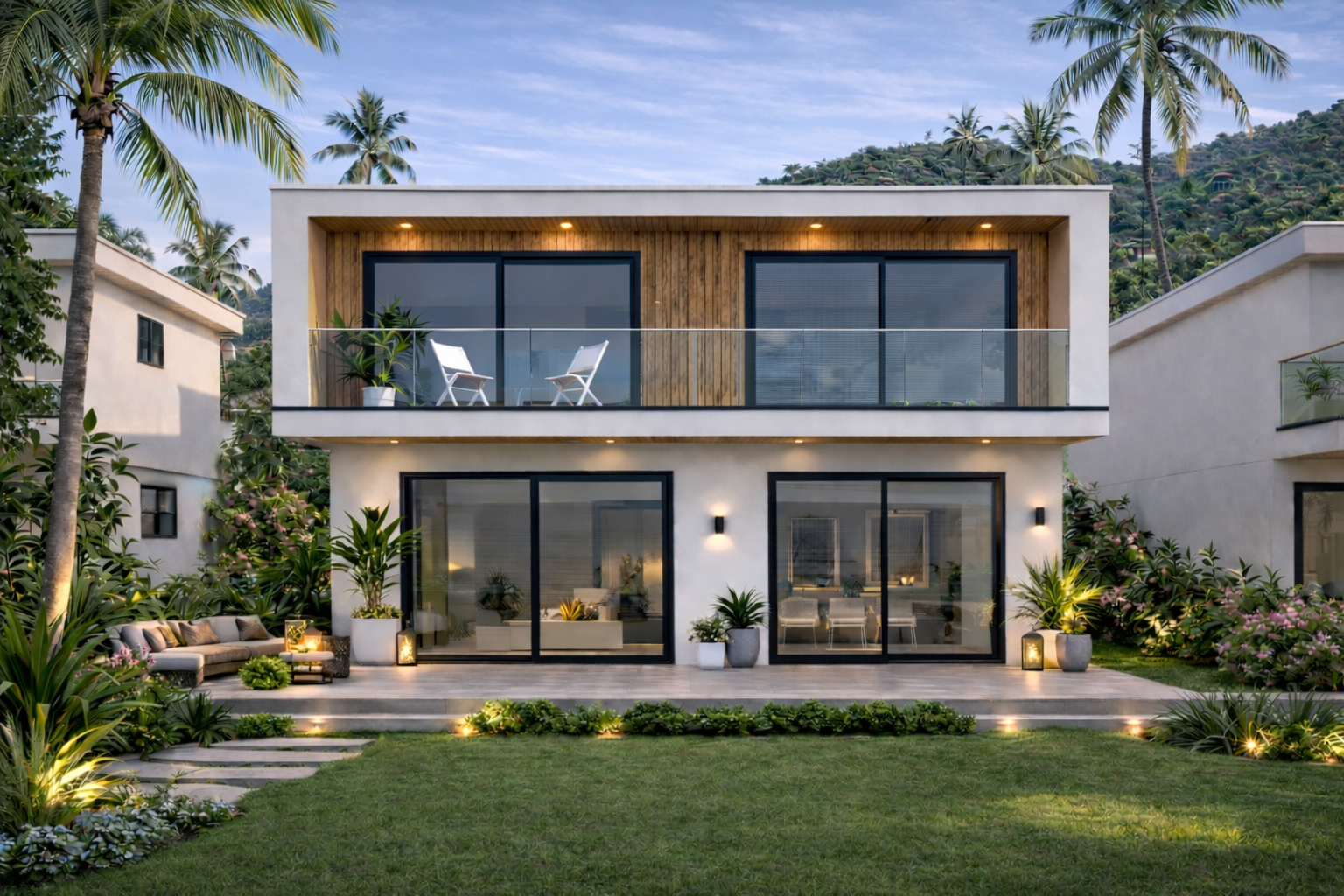

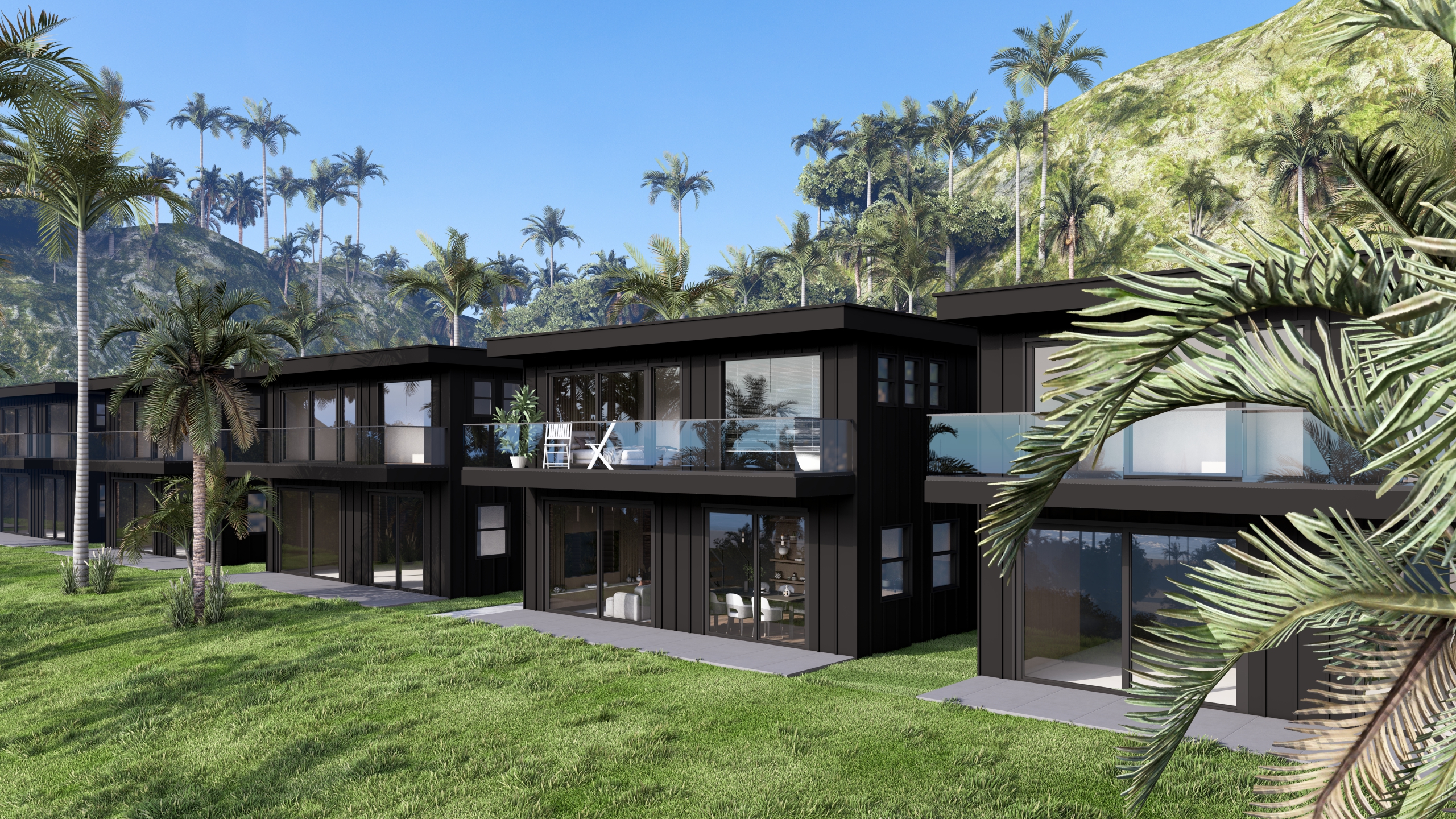

A modern two-storey home designed for elevated living, flexibility, and comfort. Featuring 1,570 sq ft of thoughtfully planned space with 3 bedrooms, 3 bathrooms, a dedicated office, and expansive glass-railed outdoor decks, The Orbit blends open-concept design with seamless indoor-outdoor living. Perfect for families, entertaining, or creating your ideal work-from-home lifestyle.
1570
sq ft
3
Bedrooms
3
Bathrooms
$241K
DIY From
$462K
Installed From
Quick Specifications
Footprint
1570
Building Size
24 X 38
Roofing
I Joists
BC Step Code
Step Code Level 3
Build Time
14 Weeks

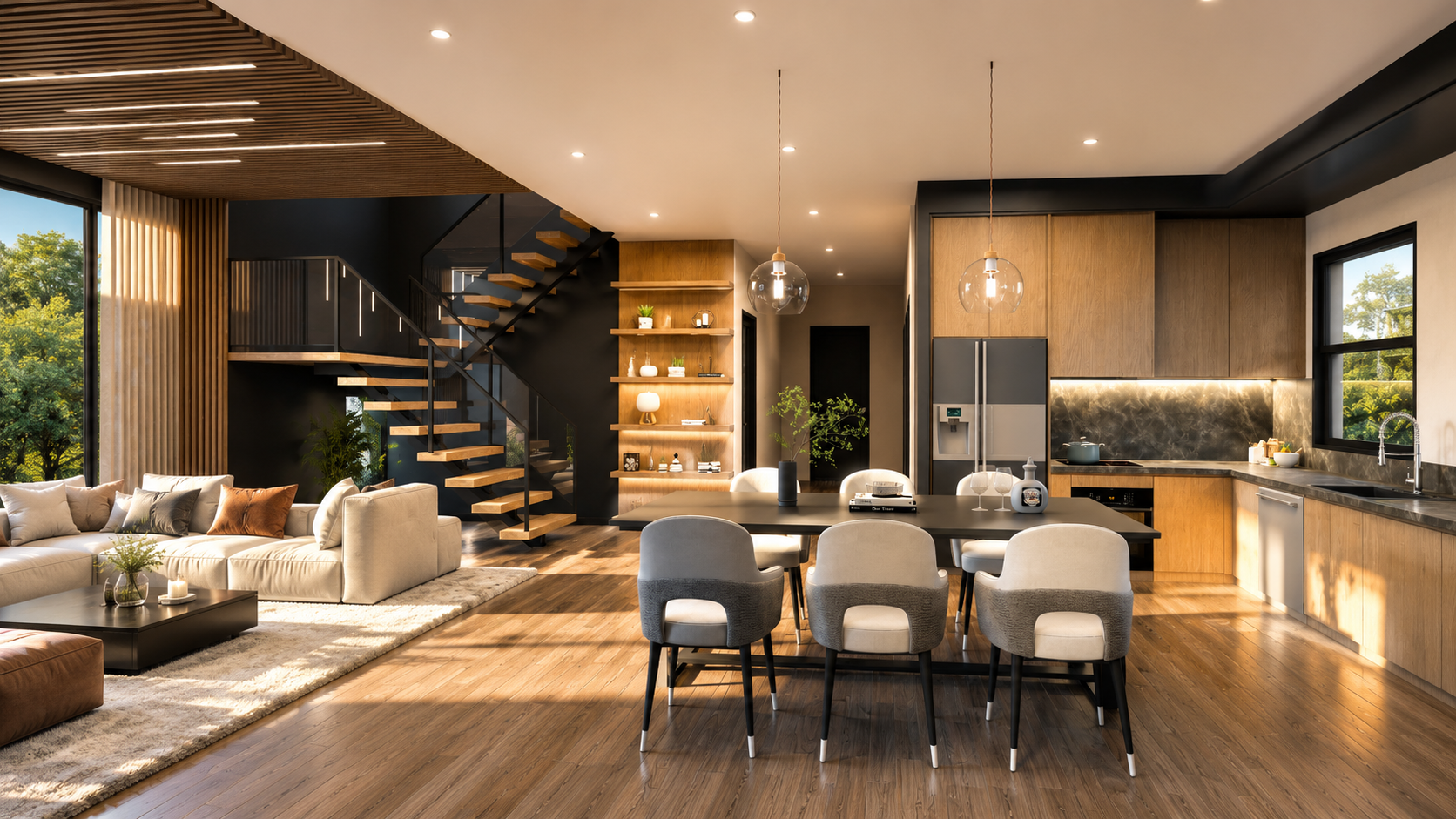

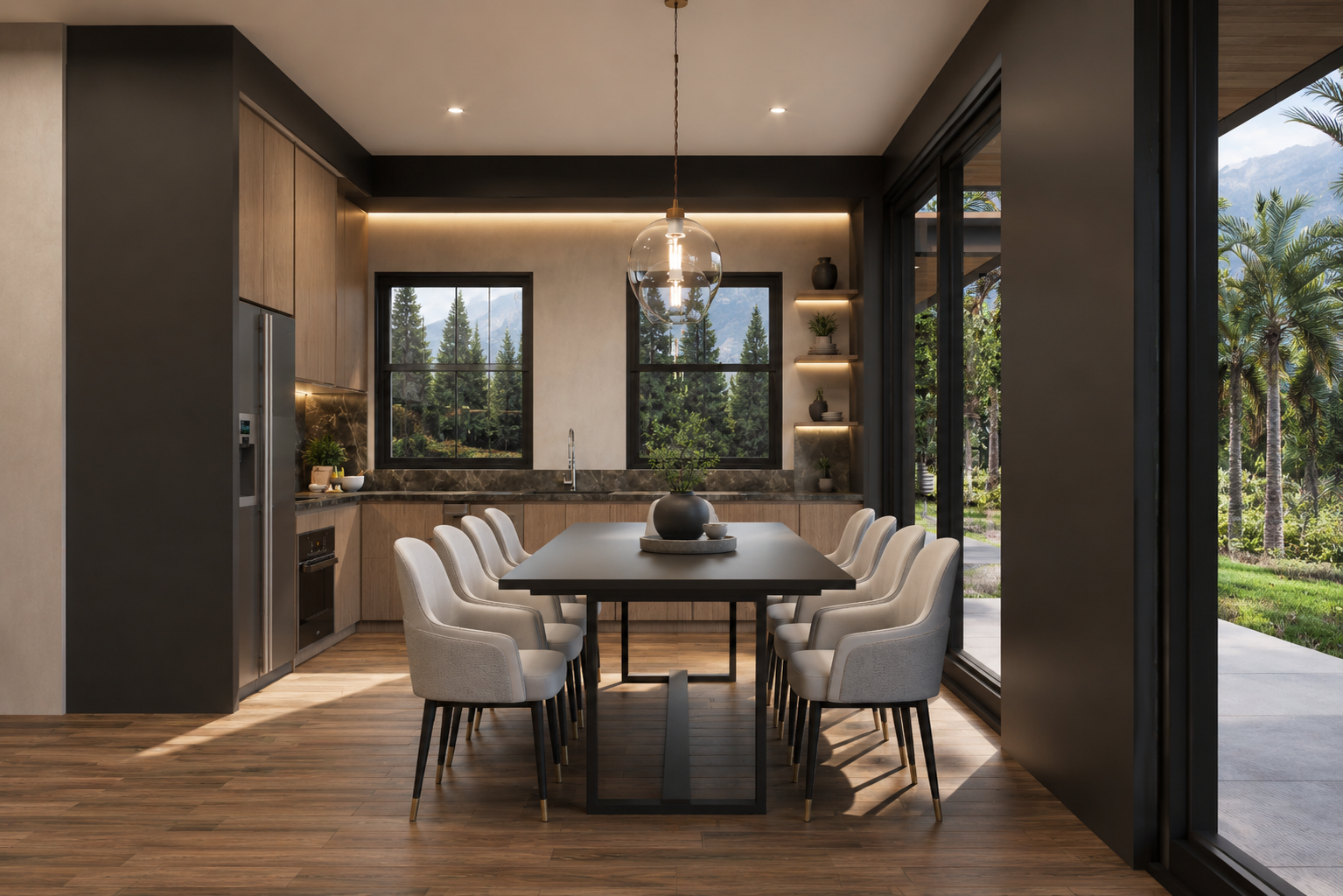

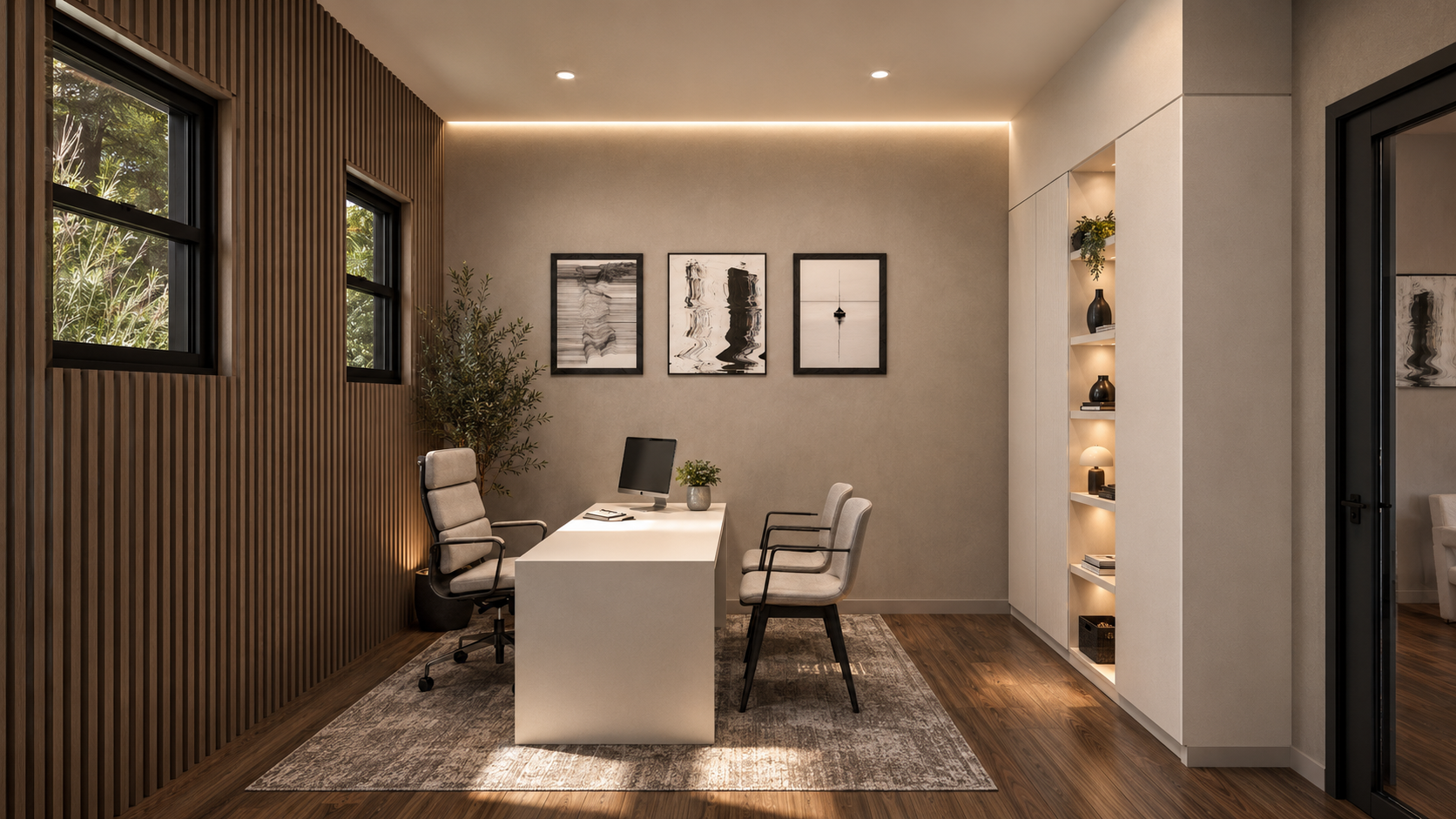

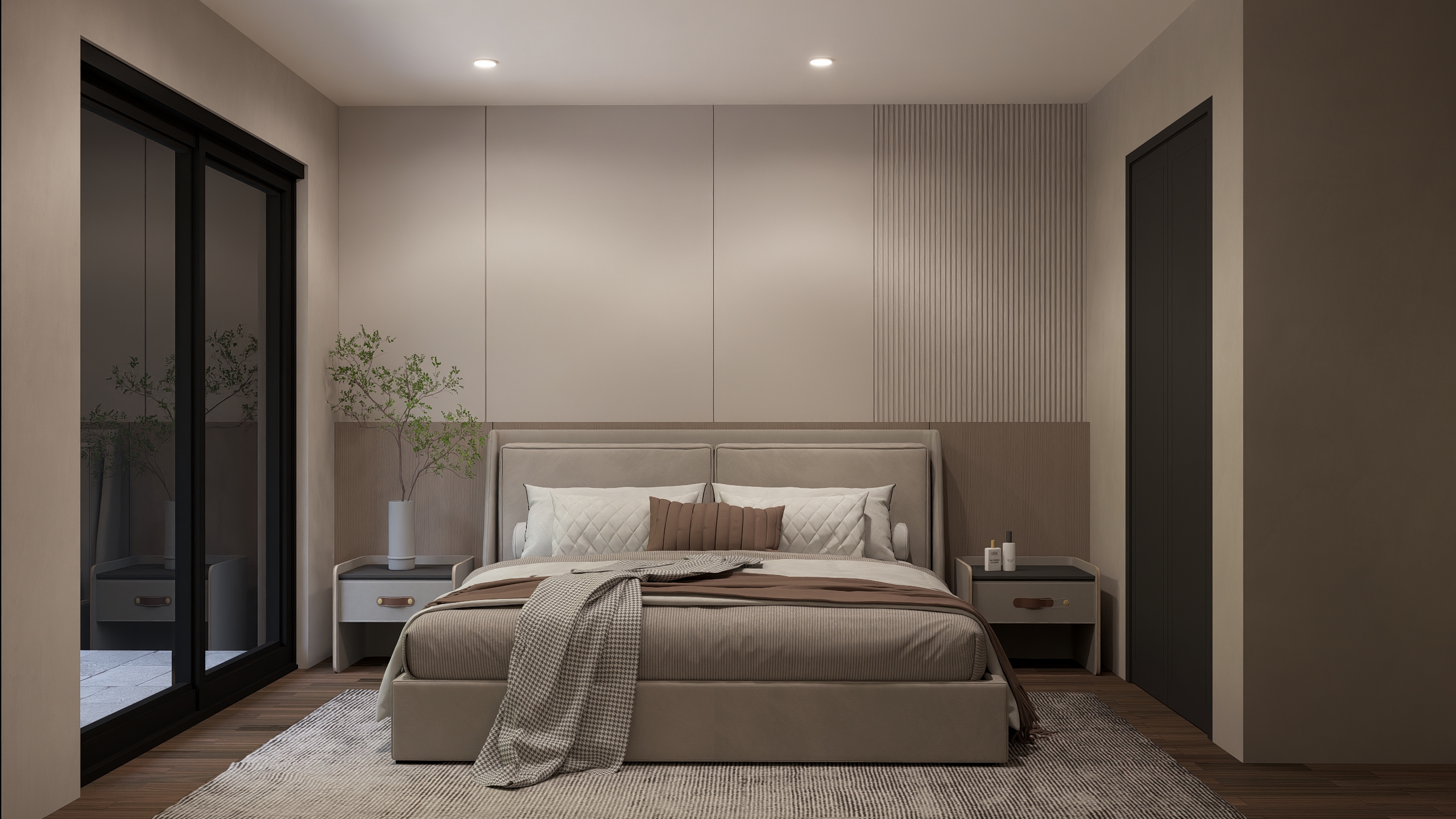

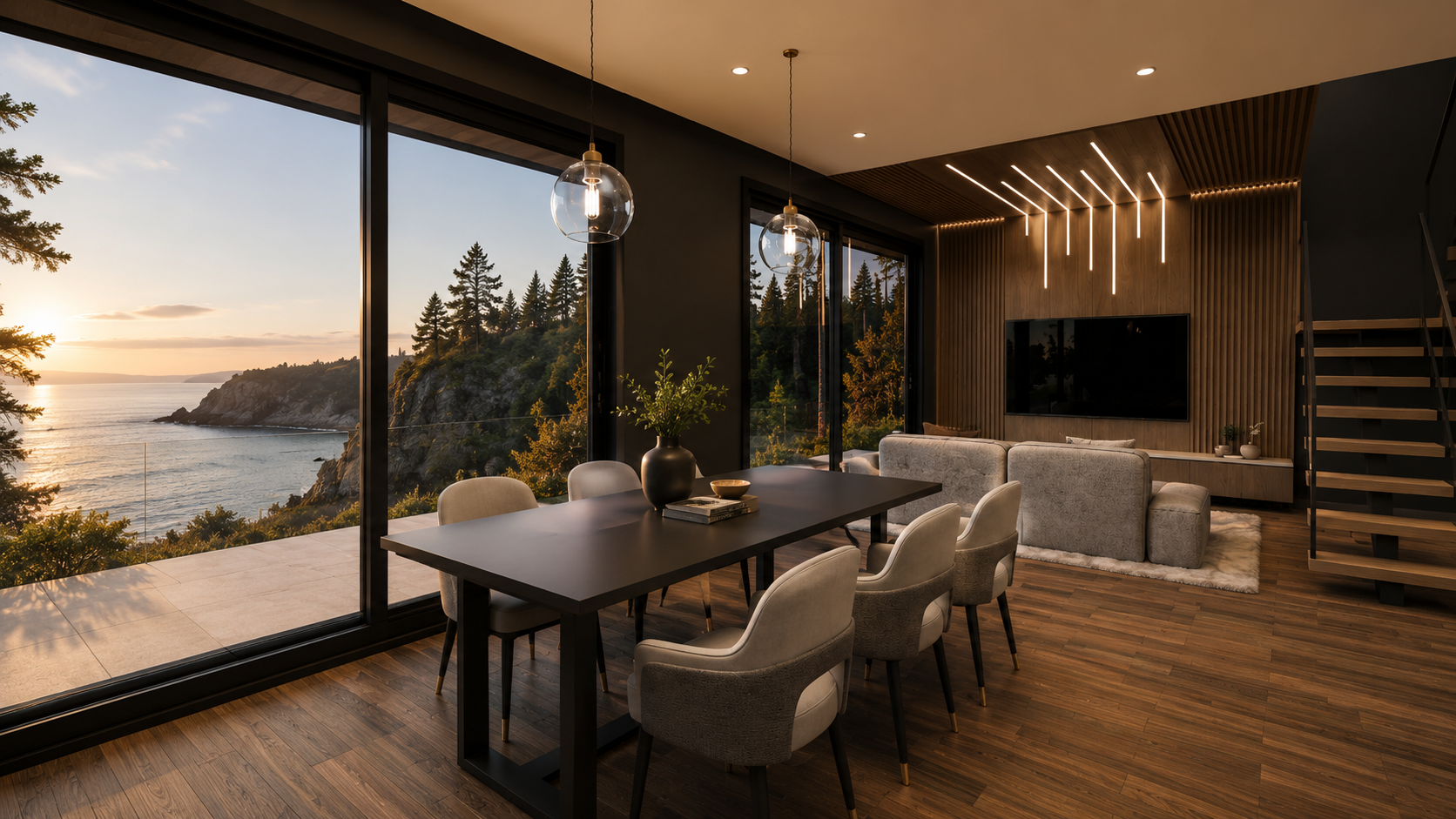

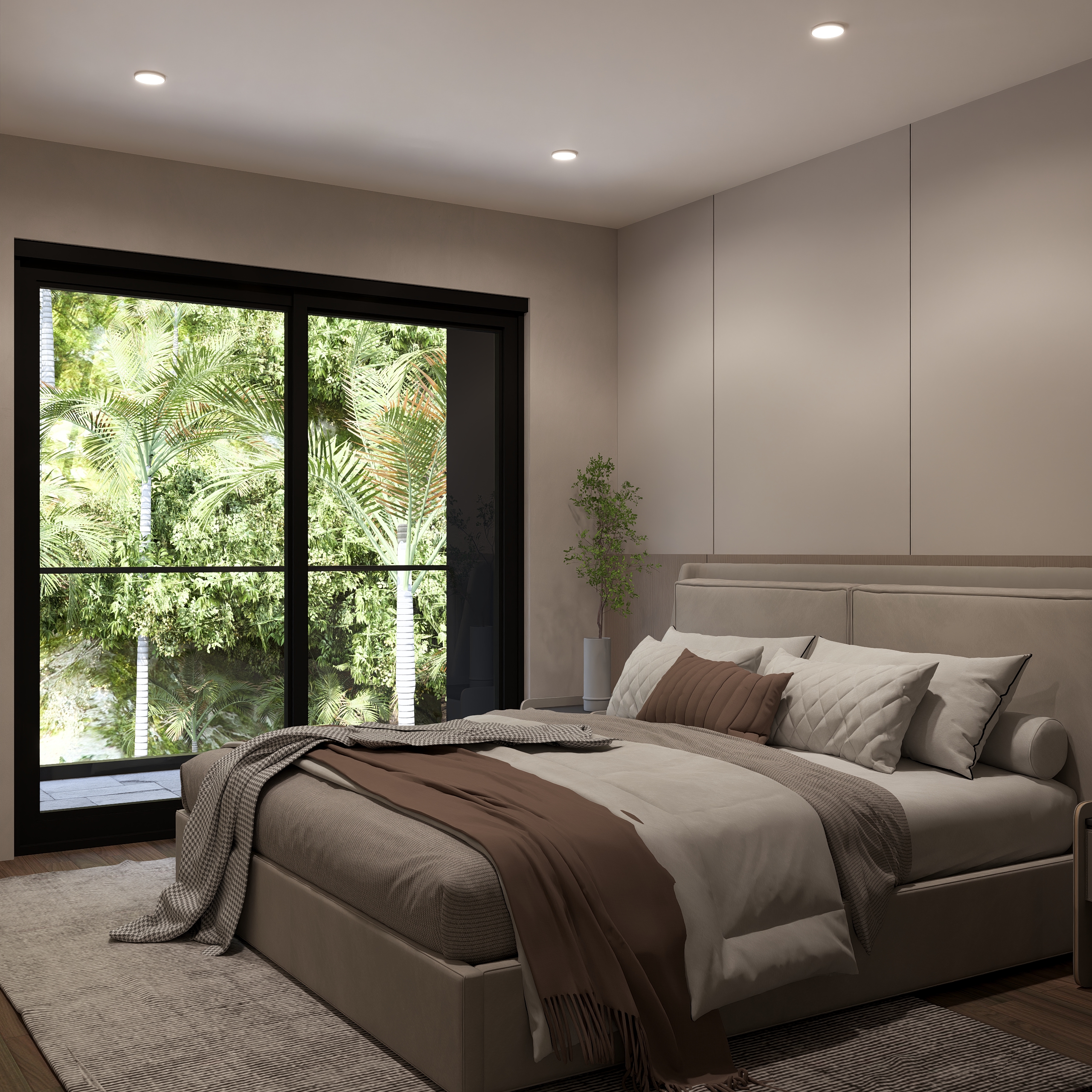

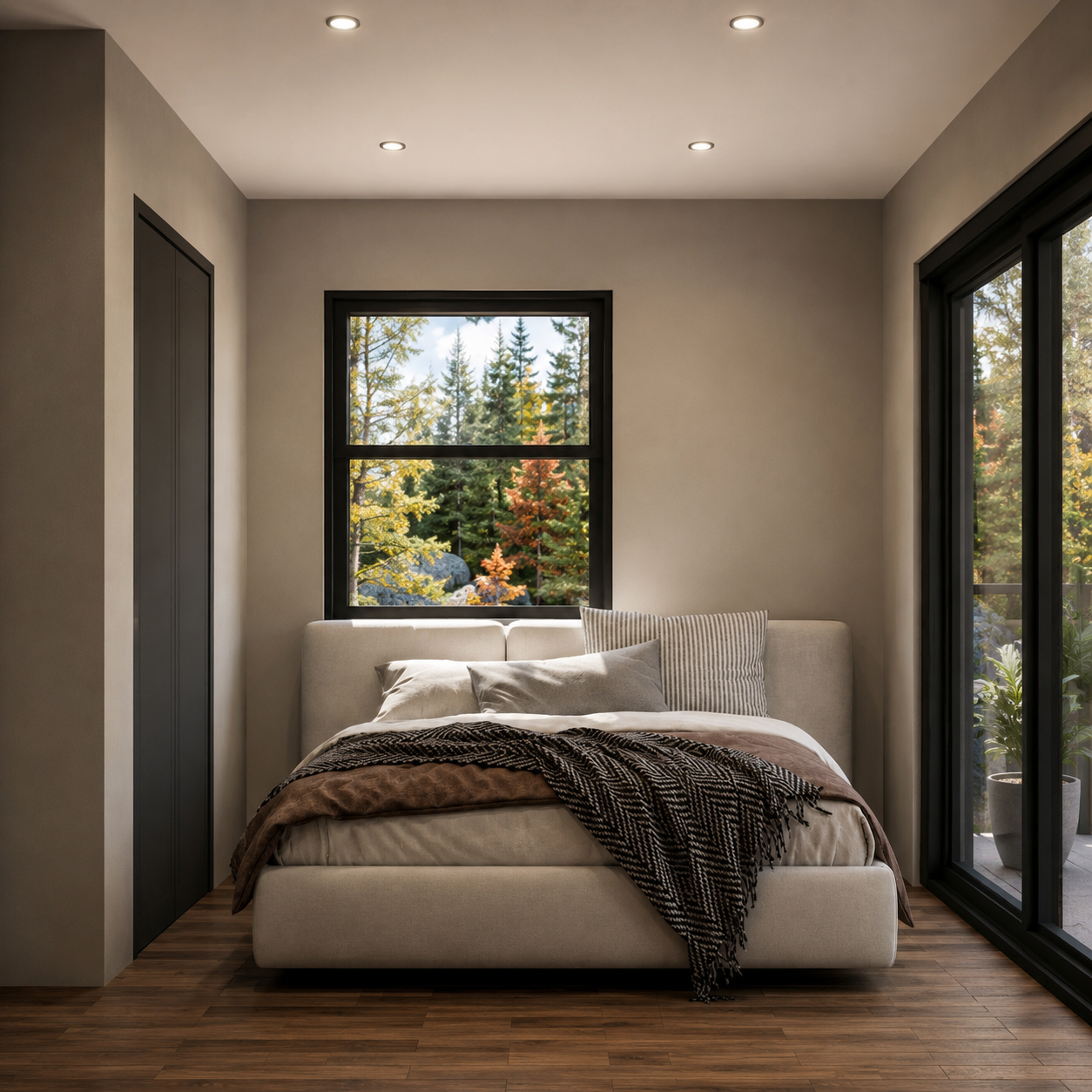

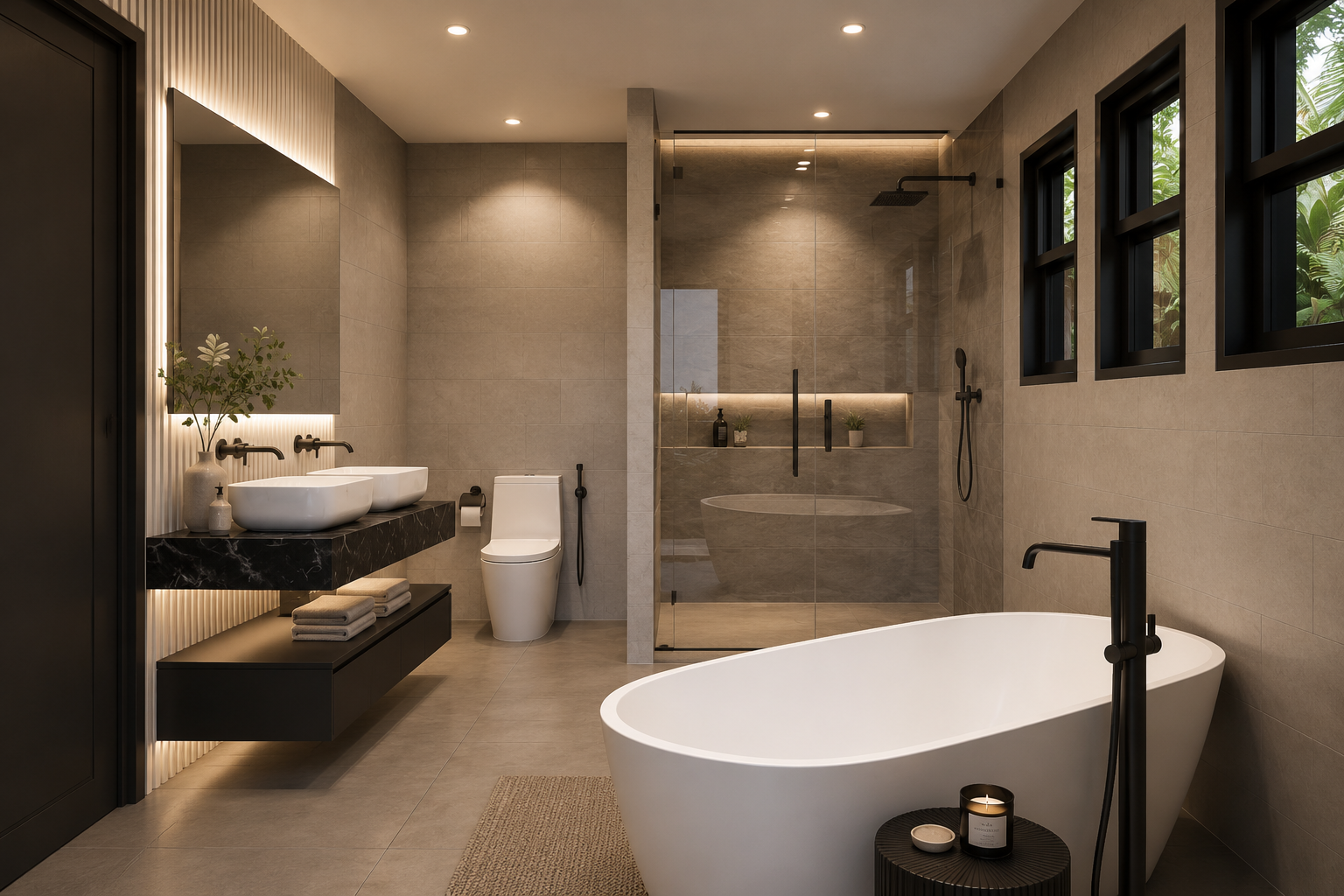

Tour the build

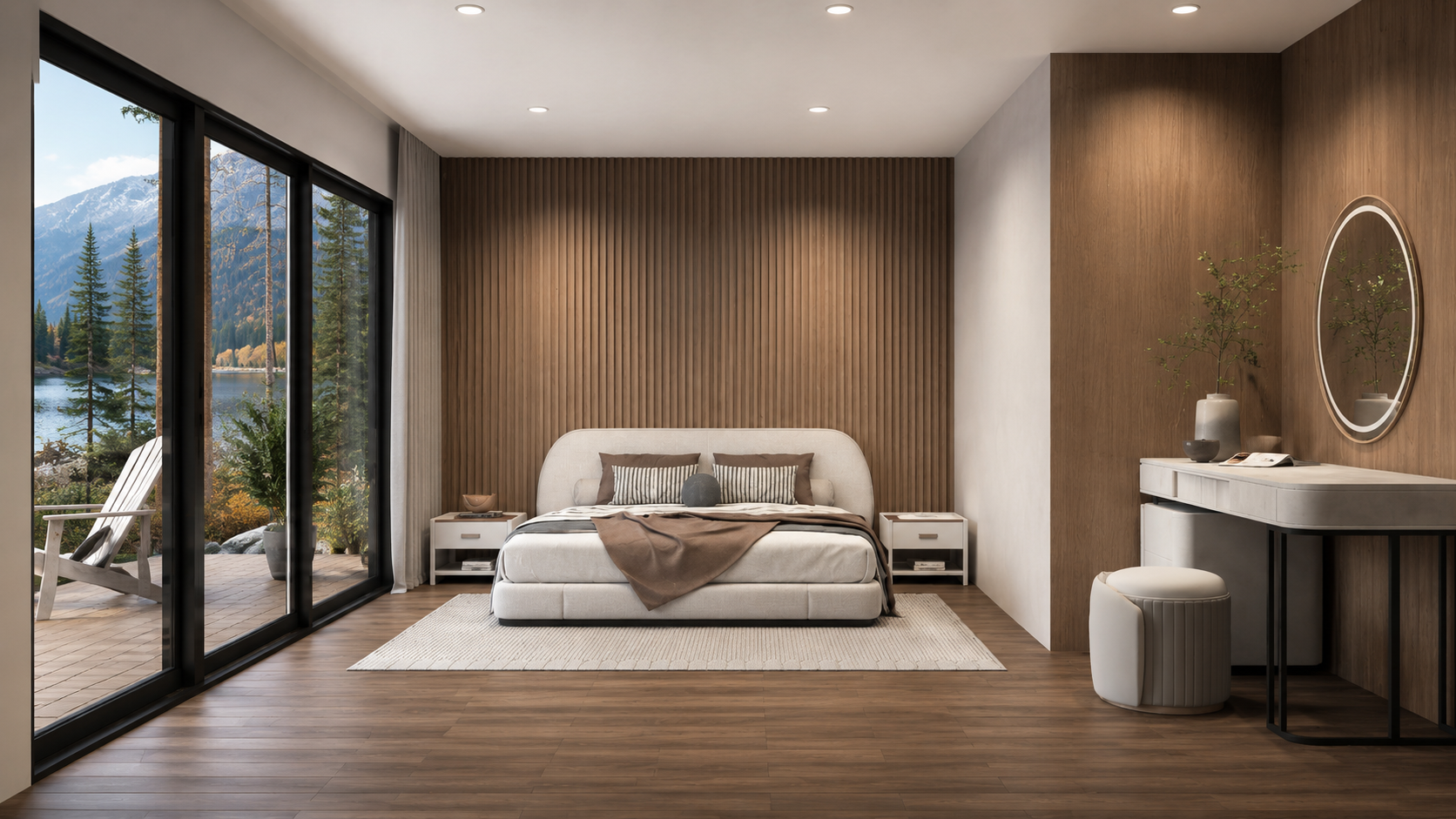

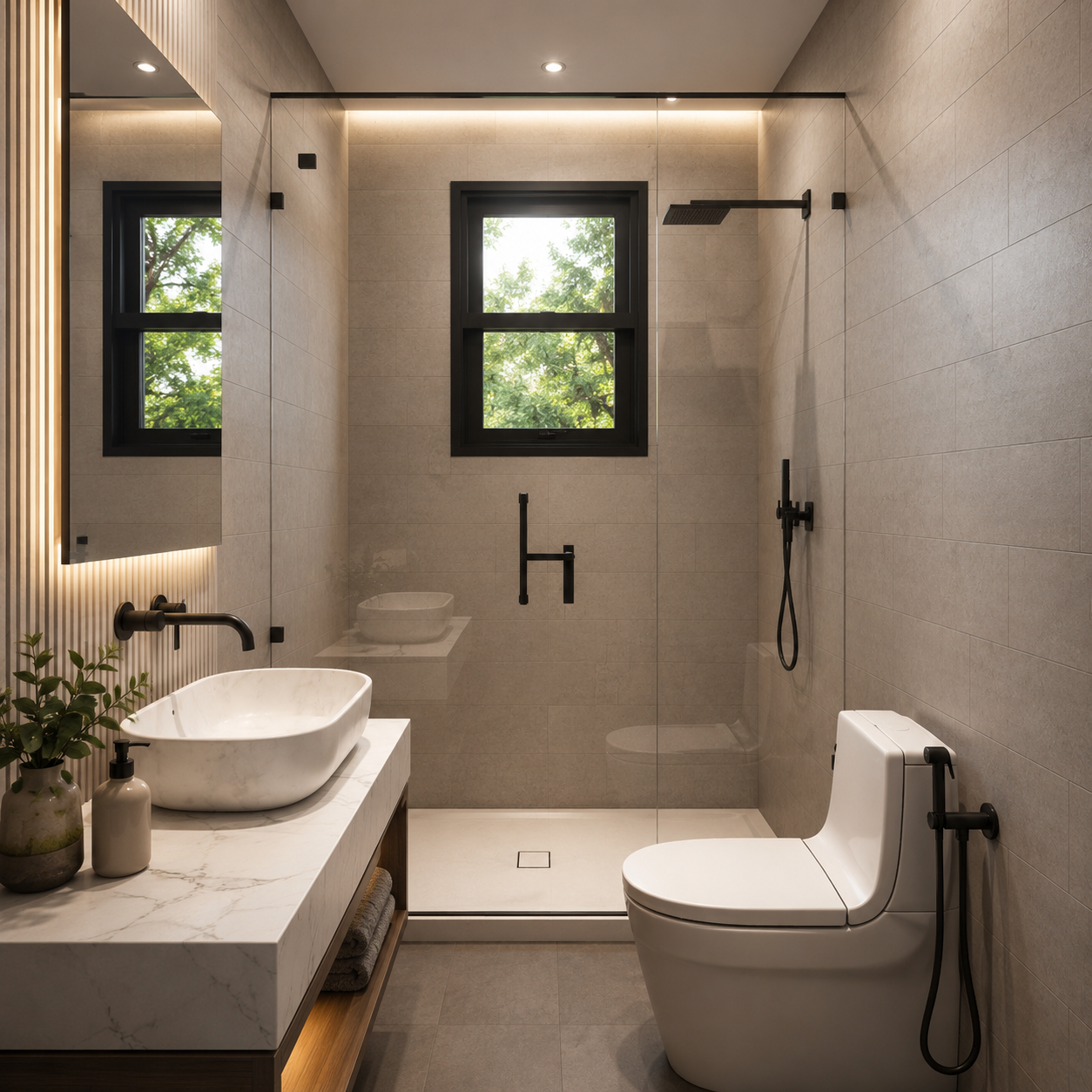

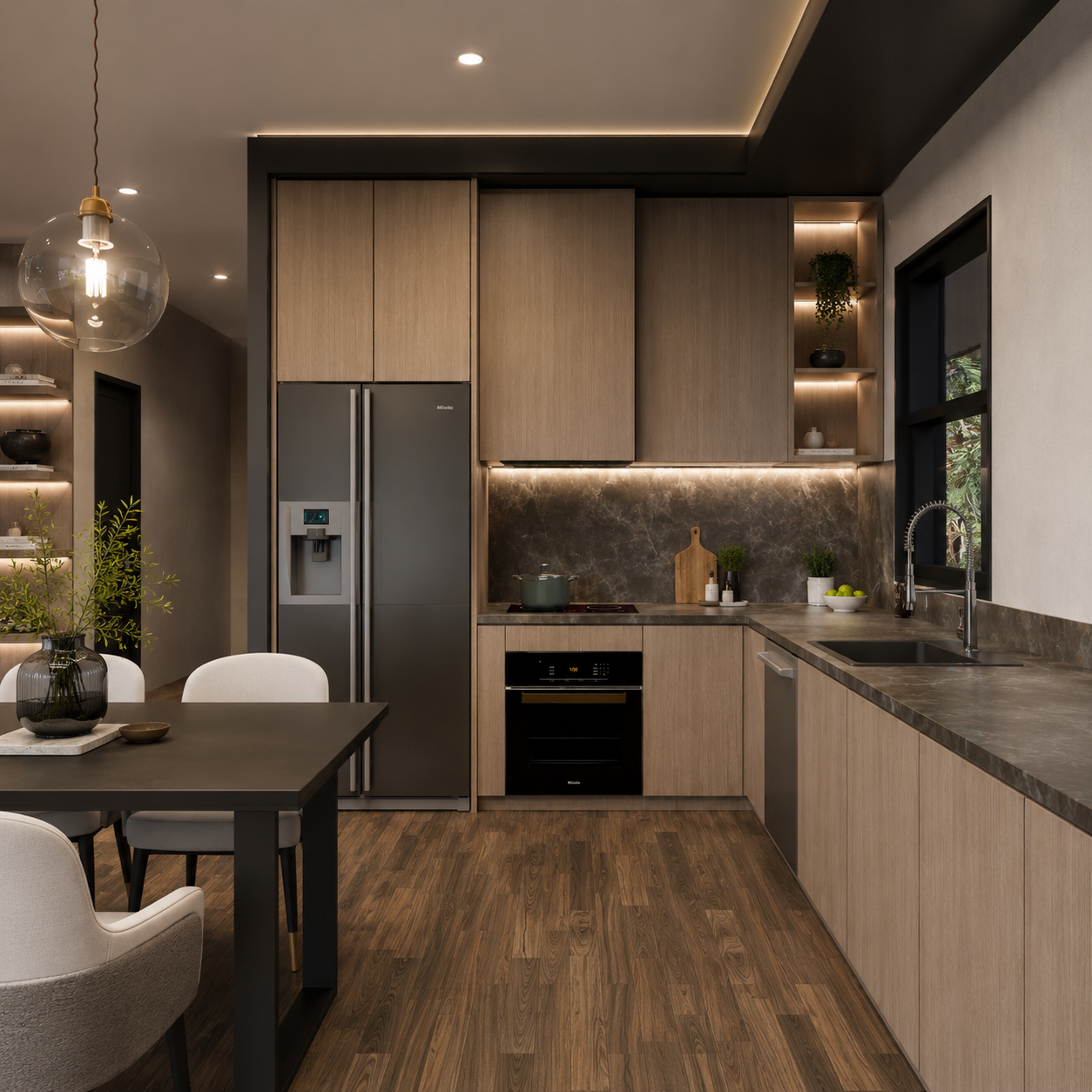

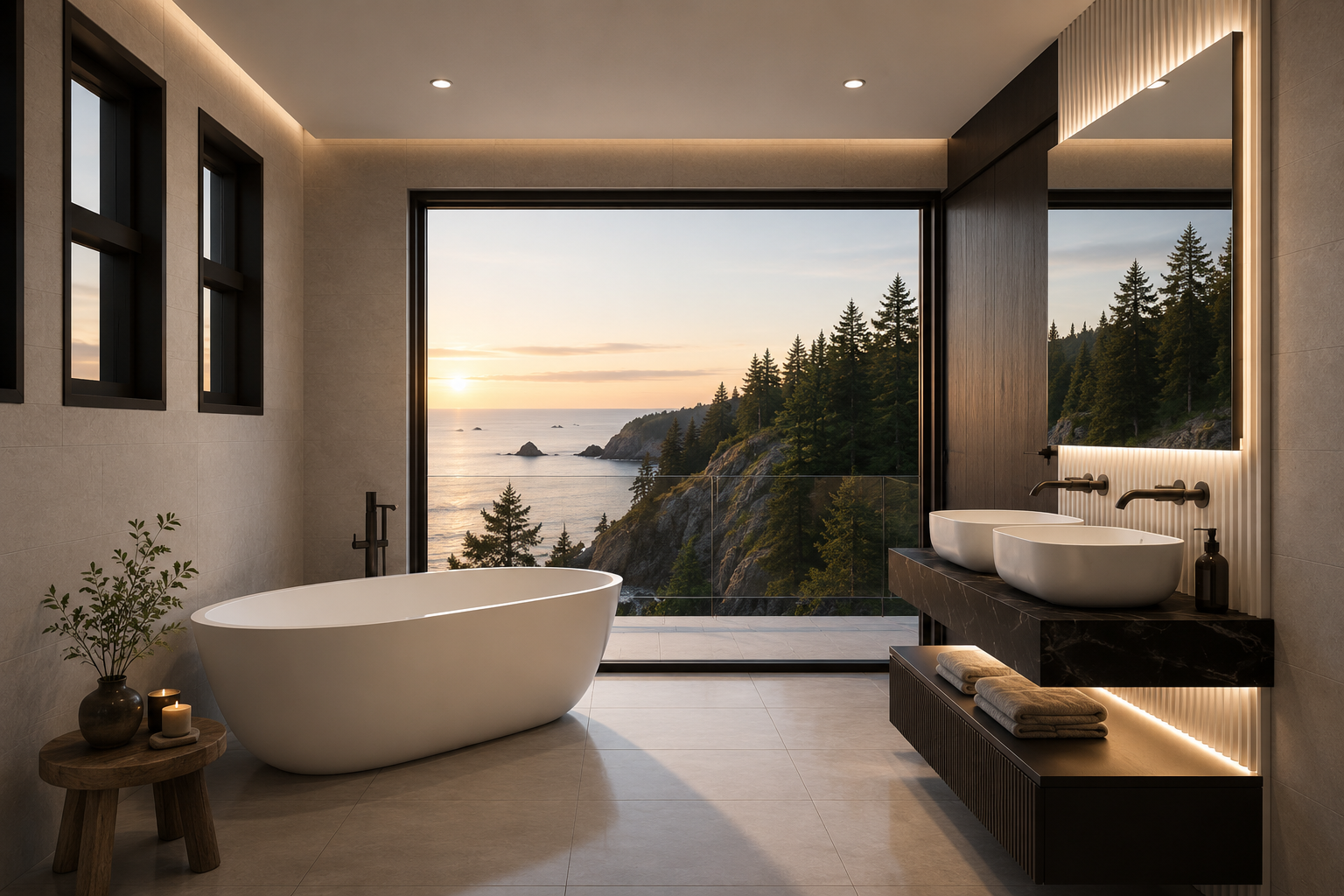

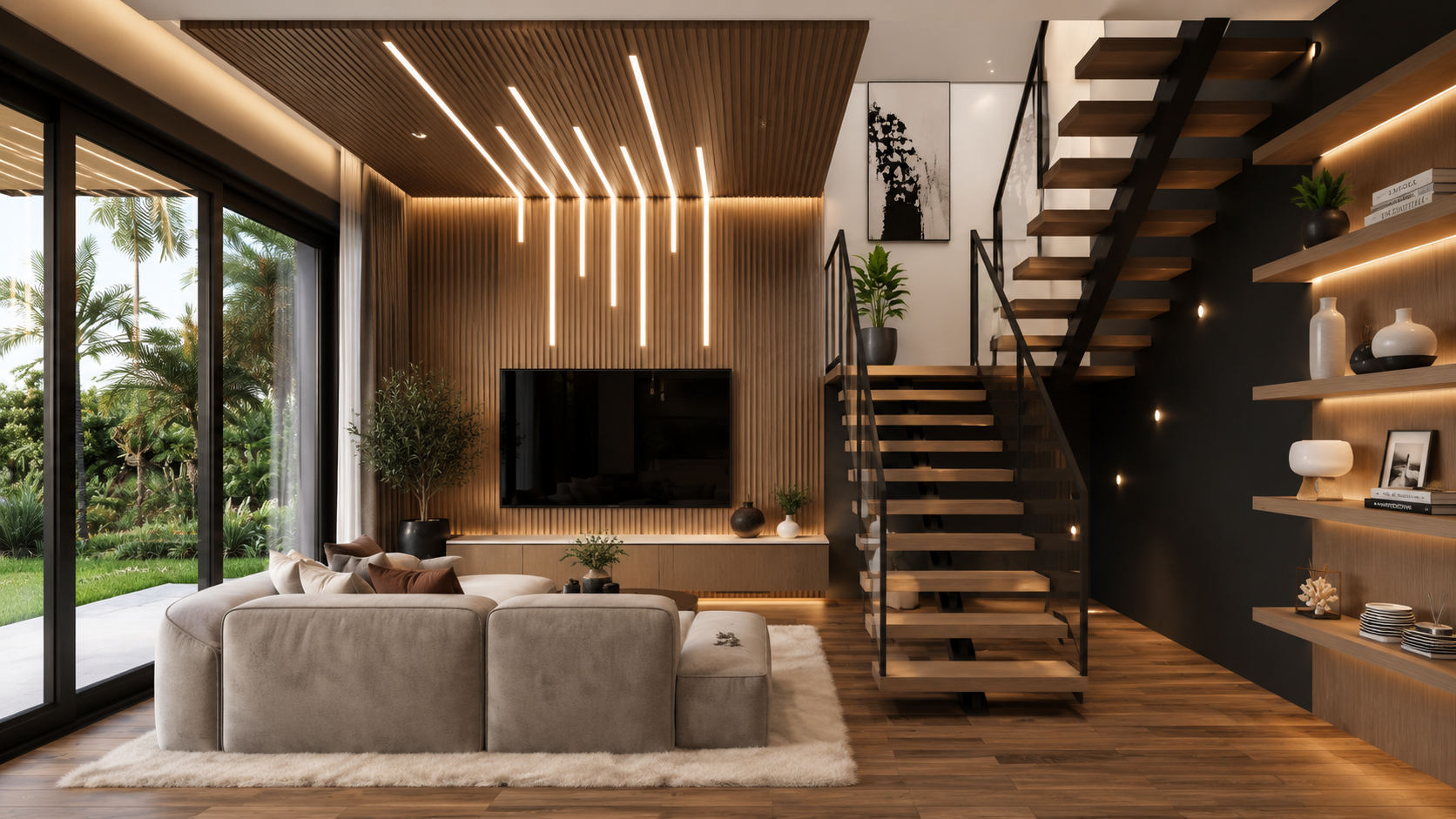

Inside the 105A-THE ORBIT.

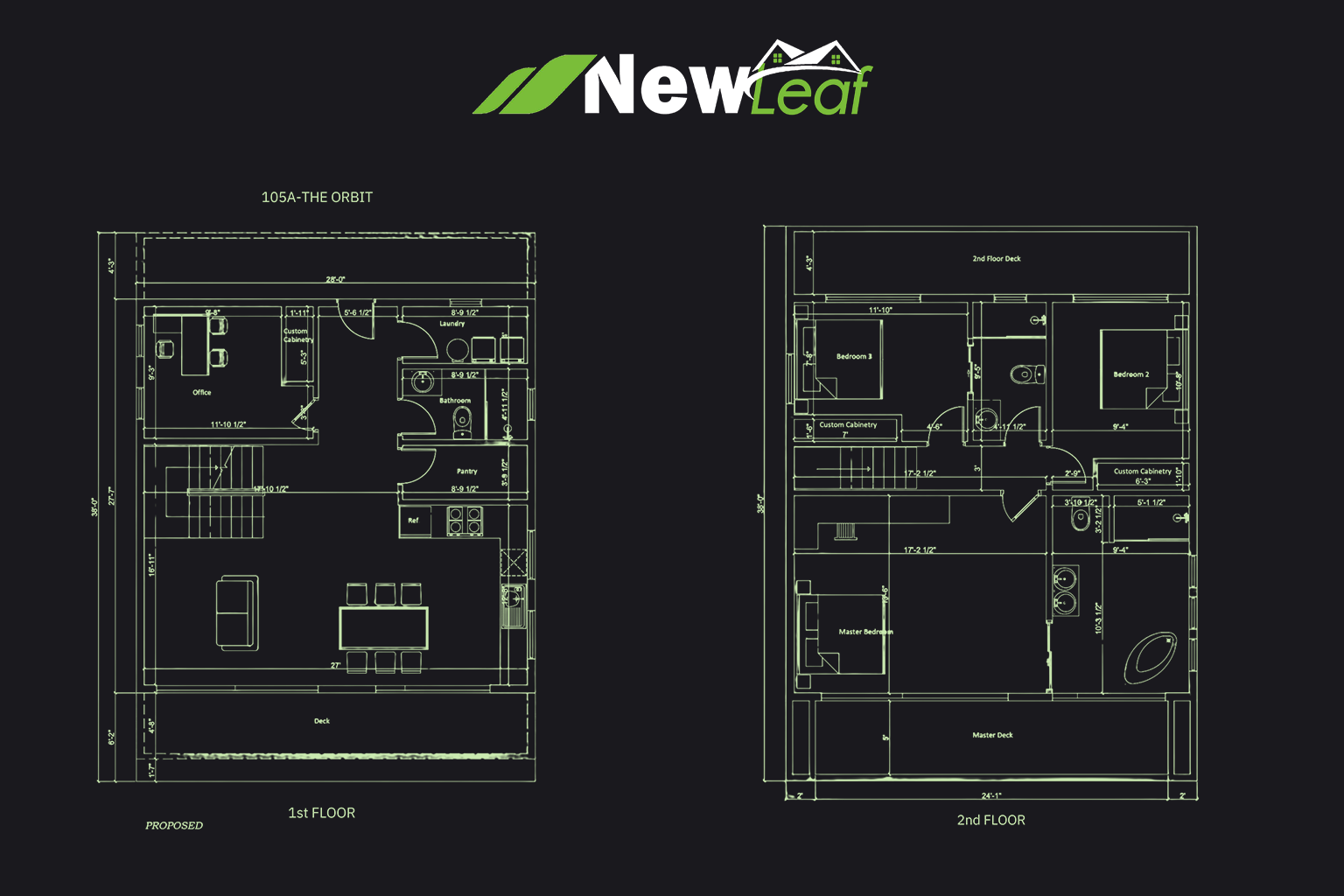

Hover any photo with a 📍 Plan badge to highlight the matching room on the floor plan.
105A-THE ORBIT
Features & Systems
What goes into every 105A-THE ORBIT.
Structure
- •Engineered timber floor joists at 19.2" o.c.
- •Panelized 2x6 wood frame walls
- •Engineered I Joist roof System
- •Concrete foundation system
Envelope
- •Rain screen and vapor barrier
- •R-22 wall insulation
- •R-40 attic insulation
- •Double-pane windows standard
Mechanical
- •Cold-climate heat pump
- •HRV with HEPA-grade filtration
- •Heat-recovery DHW
- •200A main service panel (EV-ready)
Interior Finishes
- •Quartz countertops
- •Soft-close panelized cabinetry
- •9' ceilings
- •Engineered hardwood floors
Wall System Breakdown
Engineered, panel by panel.
- •Panelized wood-frame construction
- •Factory-controlled quality at every stage
- •Continuous exterior insulation
- •Built-in service cavity for wiring + plumbing
- •Engineered for code compliance + high snow loads
- •Double-pane window upgrade available
- •3rd-party tested for air-tightness
- •Days, not weeks, to assemble on-site
Detailed Specifications
The full spec sheet.
| Component | Material | Specification | Notes |
|---|---|---|---|
| Foundation | Concrete Forms | 8" Wall | Torch On Membrane Foundation Waterproofing |
| Floor System | Engineered I-joists | 11.875 @ 19'2 OC | OSB sub floor glewed and screwed |
| Exterior Walls | 2x6 Wood Stud | 9'0 Tall, 16" OC | Continuous R-Value >22 |
| Windows | Vinyl, Double Pane | U 0.18\ SHGC 0.30 | Triple Pane Upgrade Available |
| Roofing | Standing Seam Metal | 26-gauge, 16" Panel | 40- yr Finish Warranty |
| HVAC | Cold Weather Heat Pump | 9 SEER / HSPF 12.5 / -25°C | |
| Ventilation | High-Efficiency HRV | 200 CFM, 80% recovery | HEPA-13 filtration |
Performance Comparison
How the 105A-THE ORBIT rates.
Energy Efficiency25%
Lower energy loss than conventional build average
Structural Strength80%
Exceeds NBC 2020 by 40%
Build Speed80%
14 weeks vs. 32 weeks site-built
Air Tightness80%
2.50 ACH50
Annual Operating Costs
New Leaf Conventional Build
JanFebMarAprMayJunJulAugSepOctNovDec
Walkthrough
See it in motion.
Location & Availability
Where we deliver.
Delivery available within 1,500 km of any New Leaf Vision facility. Lead times depend on configuration and current production queue.
Loading map…
BC\Alberta
Available-8 Week Lead Time
Ontario\Quebec
Available-14 Week Lead Time
Texas
Available-16 Week Lead Time
California
Available-14 Week Lead Time
Mexico-Jalisco
Available-12 Week Lead Time
Start Your Project
Ready to build your 105A-THE ORBIT? Our team will guide you through every step — from site assessment to keys in hand.
