Model 103A
103A — The Haven

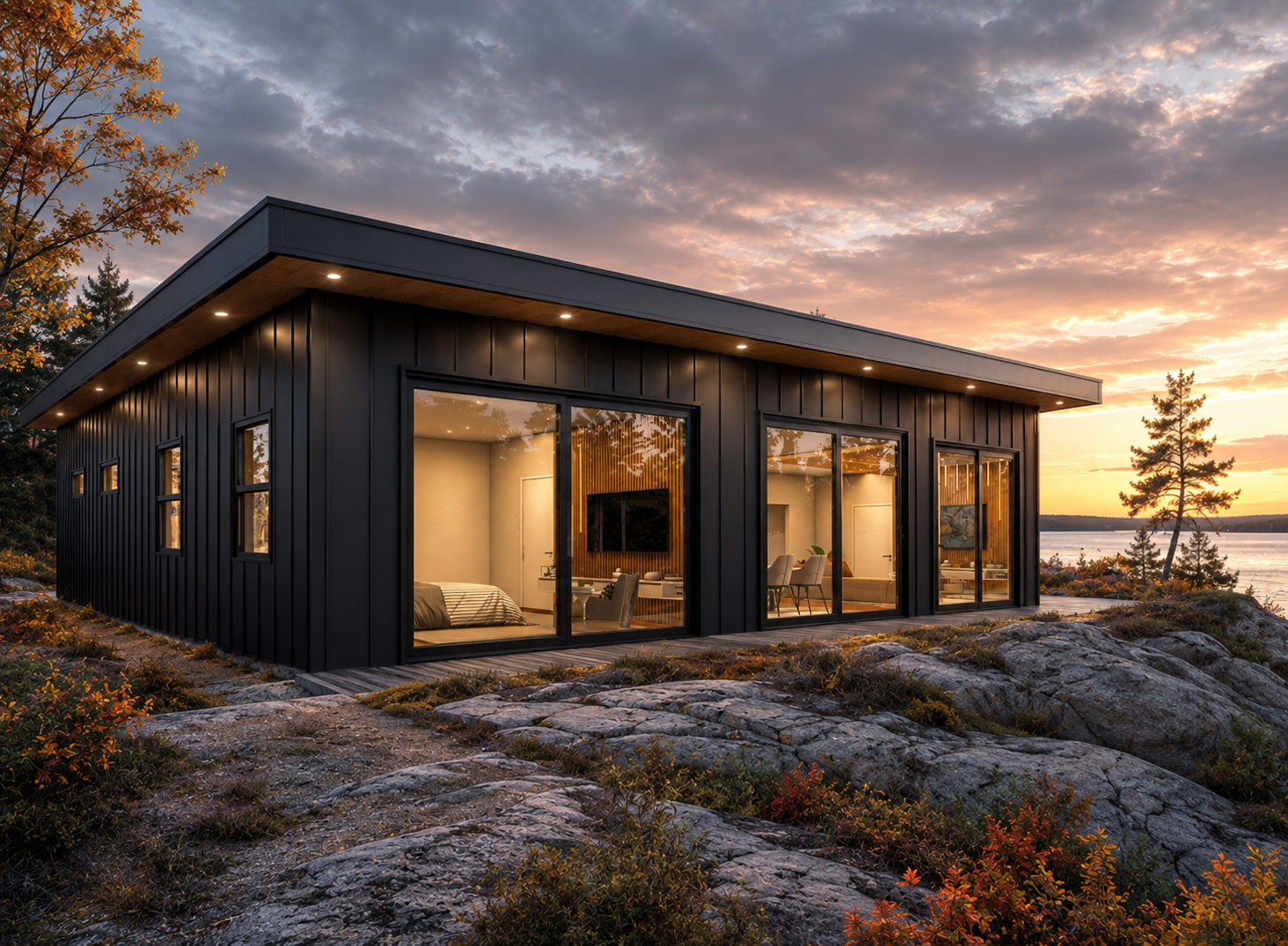

A single-storey panelized retreat with three bedrooms, dual lake/mountain views, and a wide open-plan main living area. Engineered for quiet, energy-efficient living.
1500
sq ft
3
Bedrooms
2
Bathrooms
$236K
DIY From
$496K
Installed From
Quick Specifications
Footprint
1500 sq ft
Building Size
40 × 65'
Roofing
I Joists
BC Step Code
Step Code Level 3
Build Time
10 Weeks
Tour the build

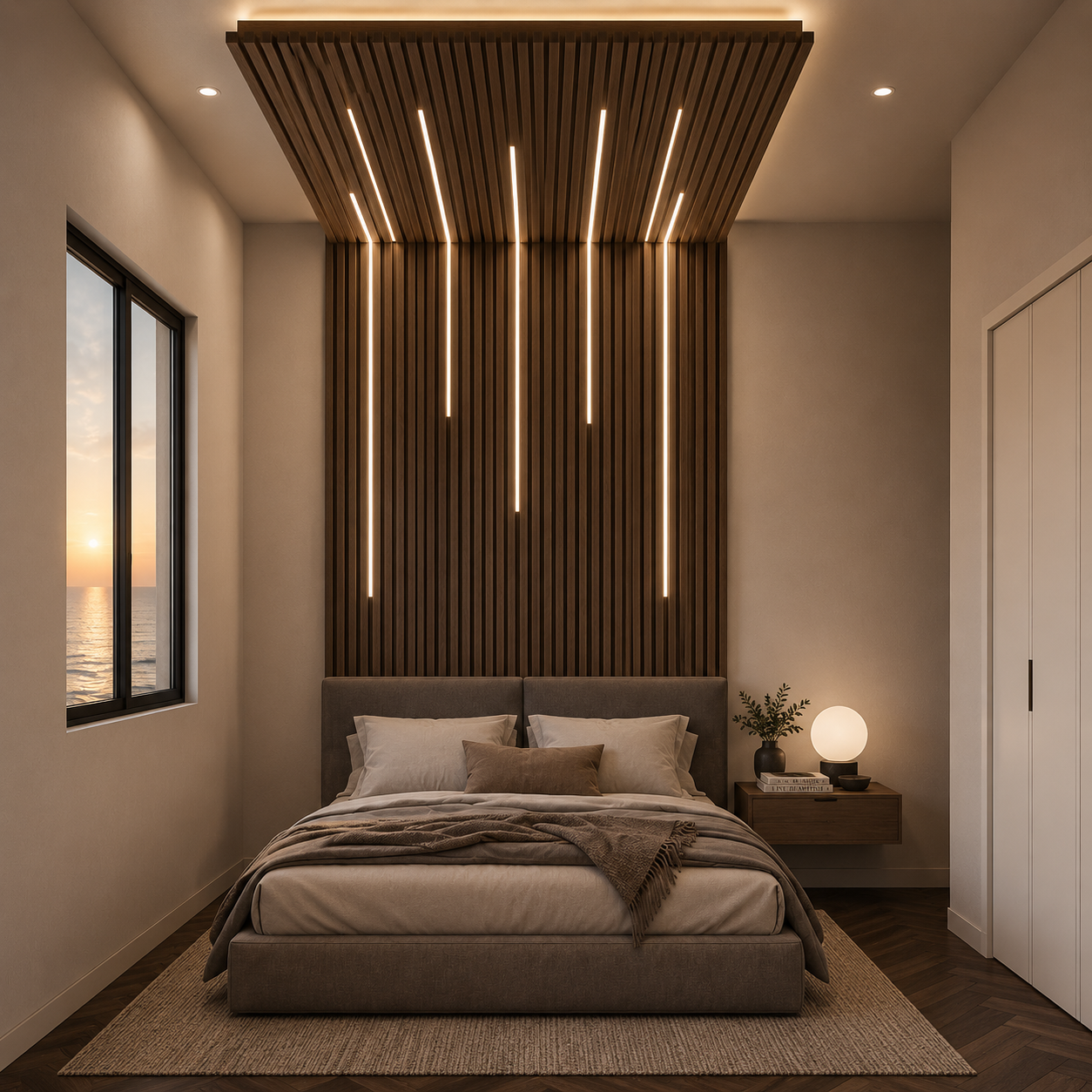

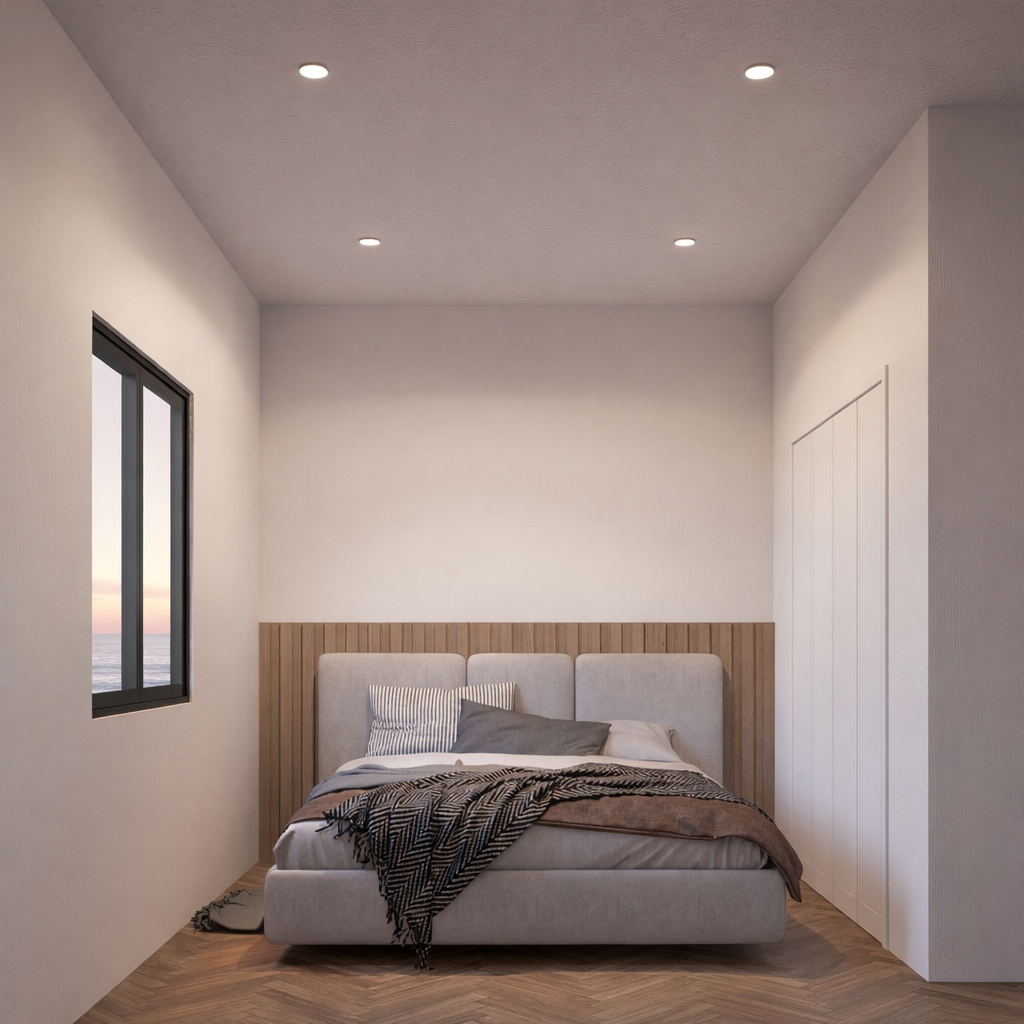

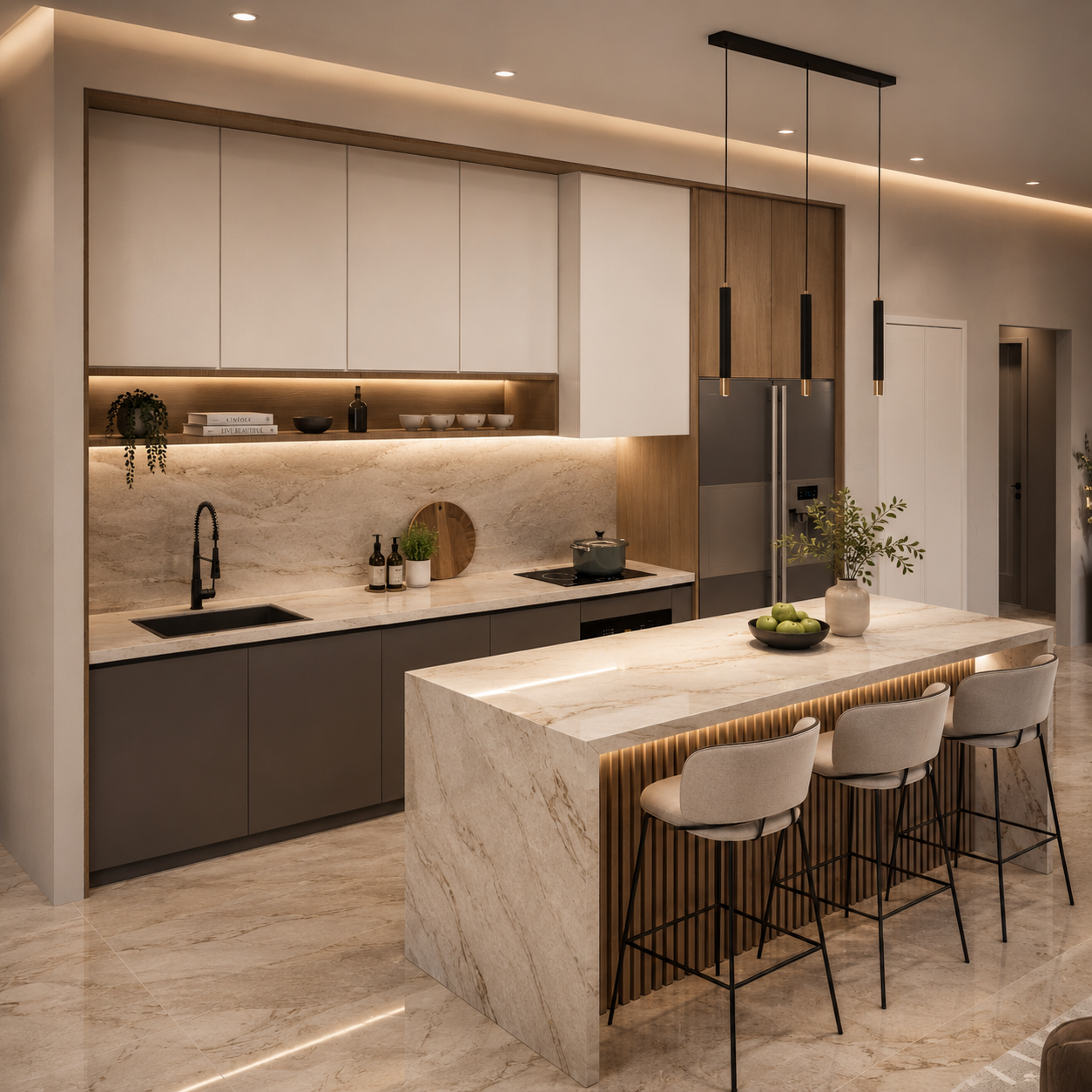

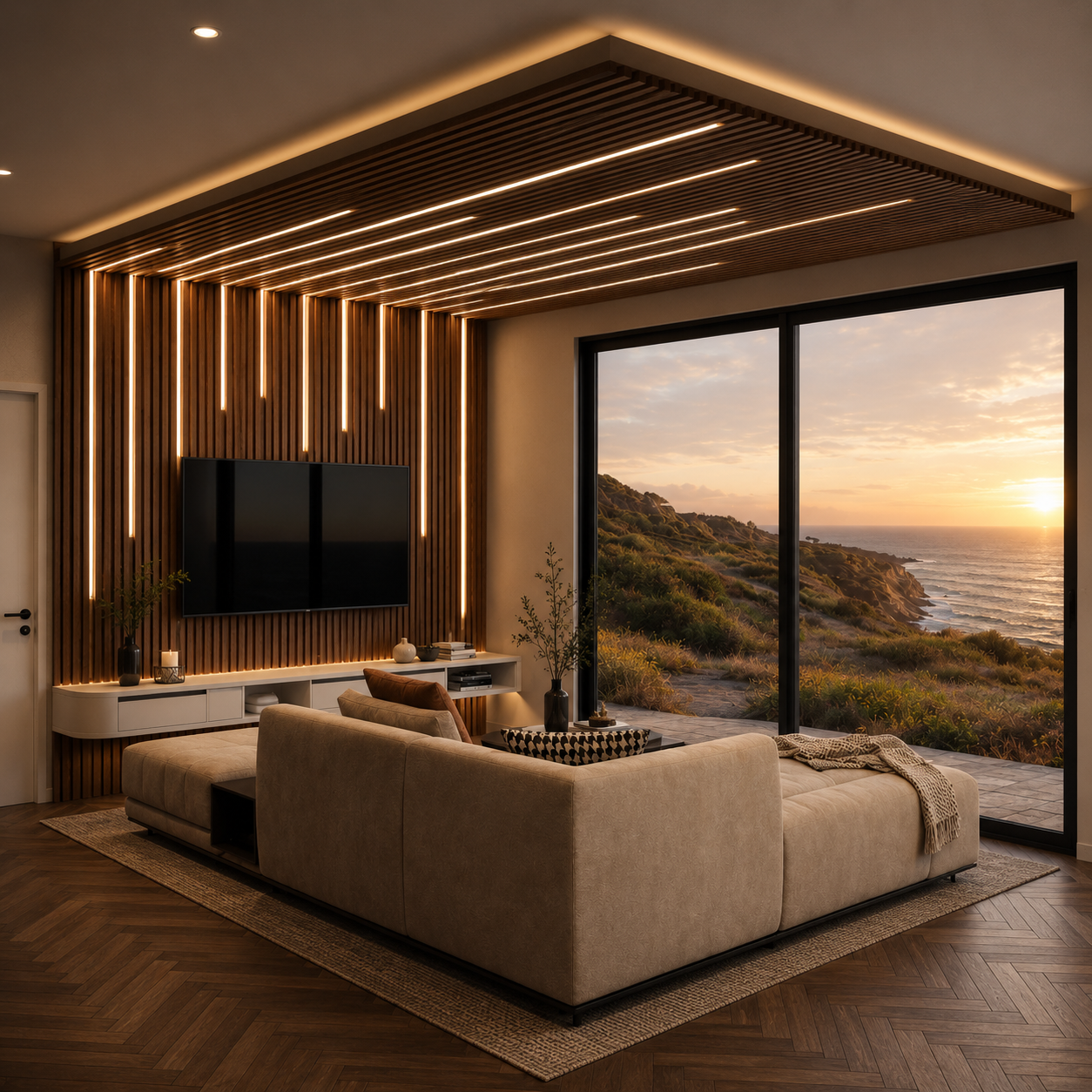

Inside the 103A — The Haven.
Hover any photo with a 📍 Plan badge to highlight the matching room on the floor plan.

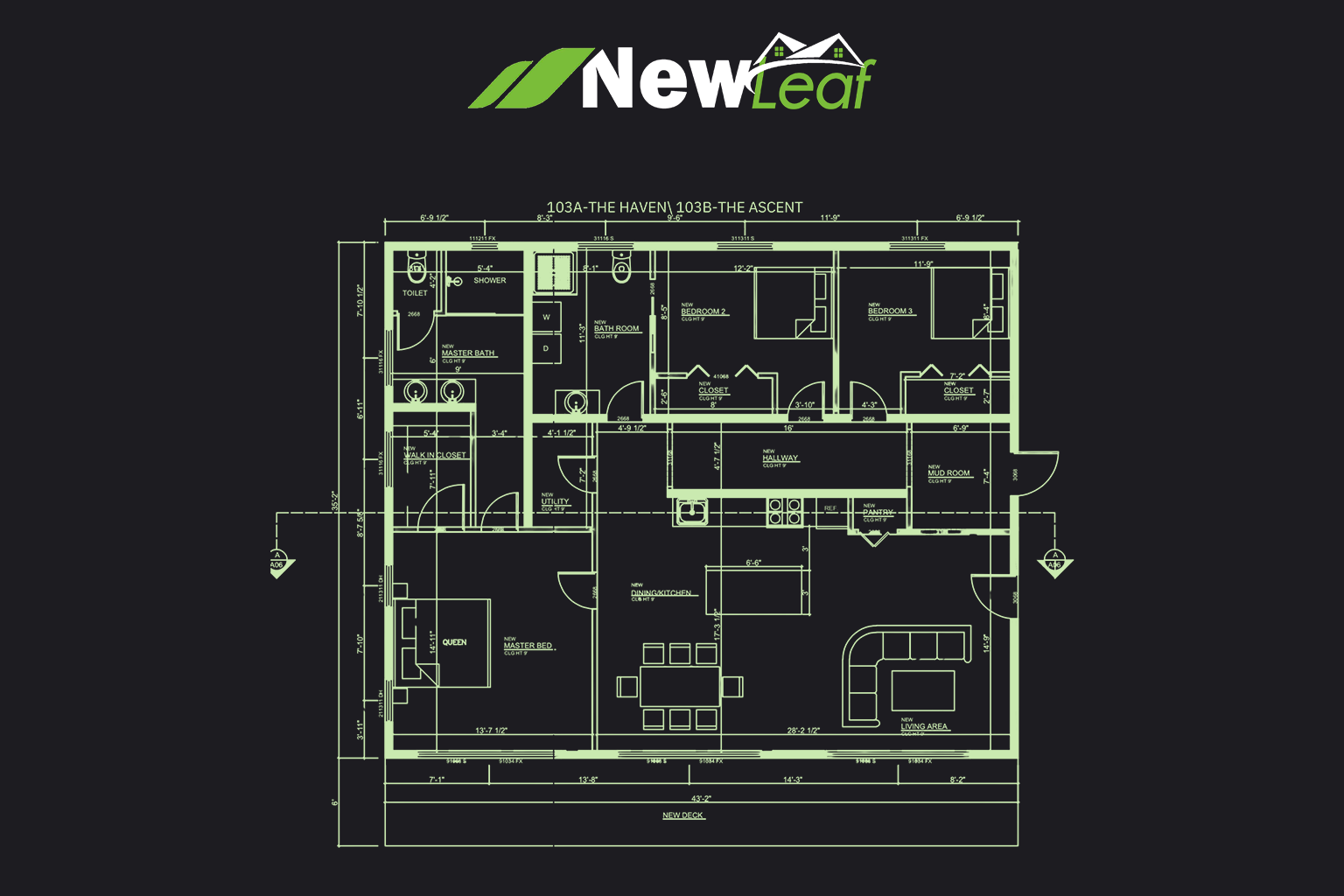

Main Floor
Features & Systems
What goes into every 103A — The Haven.
Structure
- •Panelized 2x6 wood frame walls
- •Engineered roof trusses
- •Concrete slab foundation
- •Floor joists at 19.2" o.c.
Envelope
- •Rain screen and vapor barrier
- •R-22 wall insulation
- •R-40 attic insulation
- •Double-pane windows standard
Mechanical
- •Cold-climate heat pump
- •HRV with HEPA-grade filtration
- •Heat-recovery DHW
- •200A main service panel (EV-ready)
Interior Finishes
- •Quartz countertops
- •Soft-close panelized cabinetry
- •9' ceilings
- •Engineered hardwood floors
Wall System Breakdown
Engineered, panel by panel.
- •Panelized 2x6 wood-frame walls
- •Factory-controlled assembly
- •R-22 continuous insulation
- •Built-in service cavity
- •Engineered for code compliance
- •Double-Pane Windows Standard
- •3rd-party blower-door tested
- •Site assembly in 10-14 days
Detailed Specifications
The full spec sheet.
| Component | Material | Specification | Notes |
|---|---|---|---|
| Foundation | Concrete Slab | 8" thick, reinforced | Torch On Membrane Foundation Waterproofing |
| Floor System | Engineered I-joists | TJI 11.875", 19.2" o.c. | OSB sub-floor adhered + screwed |
| Exterior Walls | Wood Stud 2x6 | 9' tall, 16" o.c. | Continuous R-value > 22 |
| Windows | Vinyl/Doubled Pane | U 0.18 / SHGC 0.30 | Triple pane Option Available |
| Roofing | Standing Seam Metal | 26-gauge, 16" panel | 40-yr finish warranty |
| HVAC | Cold Weather Heat Pump | 9 SEER / HSPF 12.5 / -25°C | |
| Ventilation | High-Efficiency HRV | 200 CFM, 80% recovery | HEPA-13 filtration |
Performance Comparison
How the 103A — The Haven rates.
Energy Efficiency25%
Lower energy loss than conventional build average
Structural Strength85%
Exceeds NBC 2020 by 40%
Build Speed92%
10 weeks vs. 32 weeks site-built
Air Tightness55%
2.5 ACH50
Annual Operating Costs
New Leaf Conventional Build
JanFebMarAprMayJunJulAugSepOctNovDec
Walkthrough
See it in motion.
Location & Availability
Where we deliver.
Delivery available within 1,500 km of any New Leaf Vision facility. Lead times depend on configuration and current production queue.
Loading map…
Vancouver, BC
Available —4 week lead time
Calgary, AB
Available — 6 week lead time
Toronto, ON
Available — 8 week lead time
Seattle, WA
Available — 6 week lead time

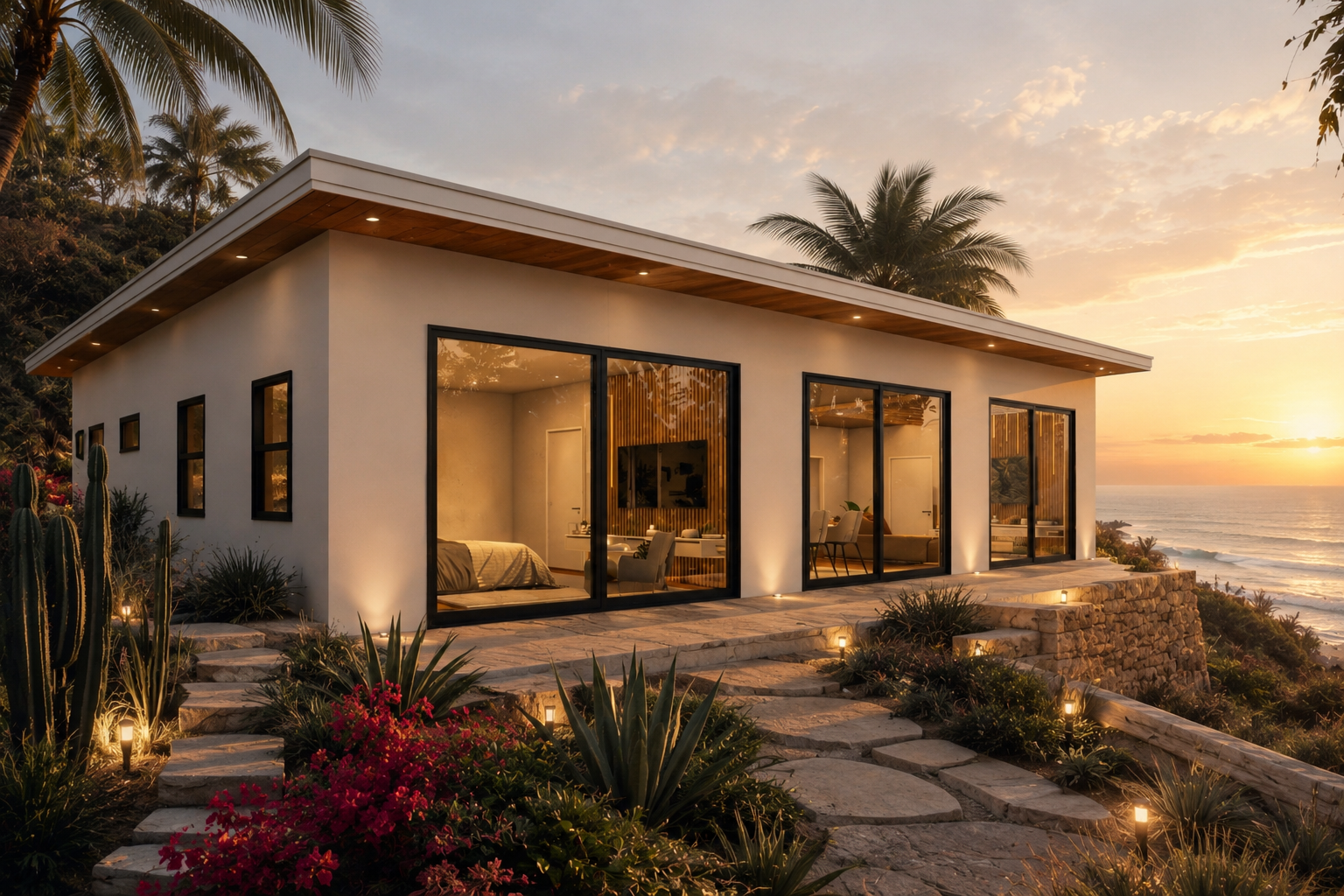

Bucerías, Mexico
Available — 8 week lead time
Start Your Project
Ready to build your 103A — The Haven? Our team will guide you through every step — from site assessment to keys in hand.
